SLV PANEL V 600, 34W 830/840 UGR

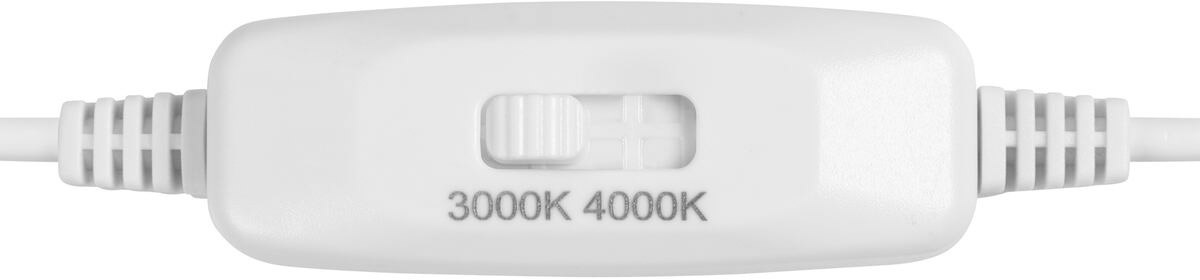

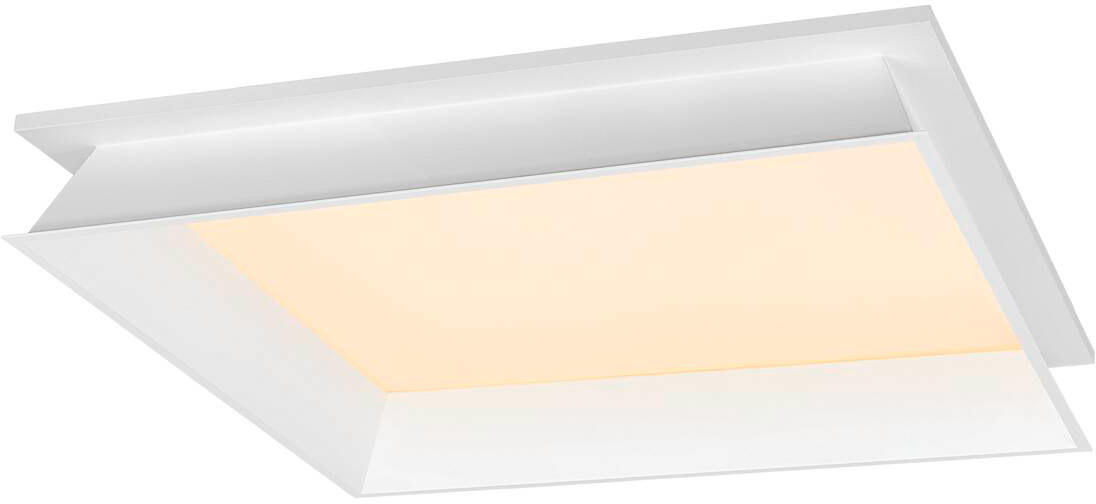

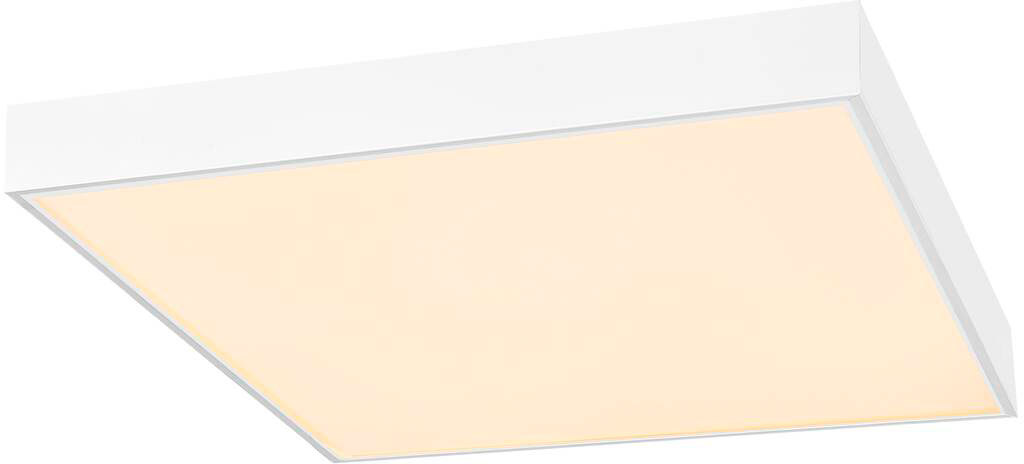

Discover our new technical product range: SLVtec.With state-of-the-art LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From wet room lights to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. These include the PANEL V light, which is available as a surface-mounted, recessed and DALI version. The light colour (3000K/4000K) and light intensity (4100lm/4350lm) can be easily changed via dip switches. Thanks to the high light output of up to 120 lm/W and the UGRTechnical data:

Product name:	Panel V 600
Colour:	white
Material:	Steel
electrical power:	34 W
Rated value luminous efficacy:	118/124 lm/W
Luminous flux:	4000 / 4200 lm
Half beam angle:	85 °
CRI:	80
UGR =:	19
Protection category:	II
IP Code:	IP 40 / IP 54
Assembly:	Recessed
Assembly details:	Ceiling
Shape:	square

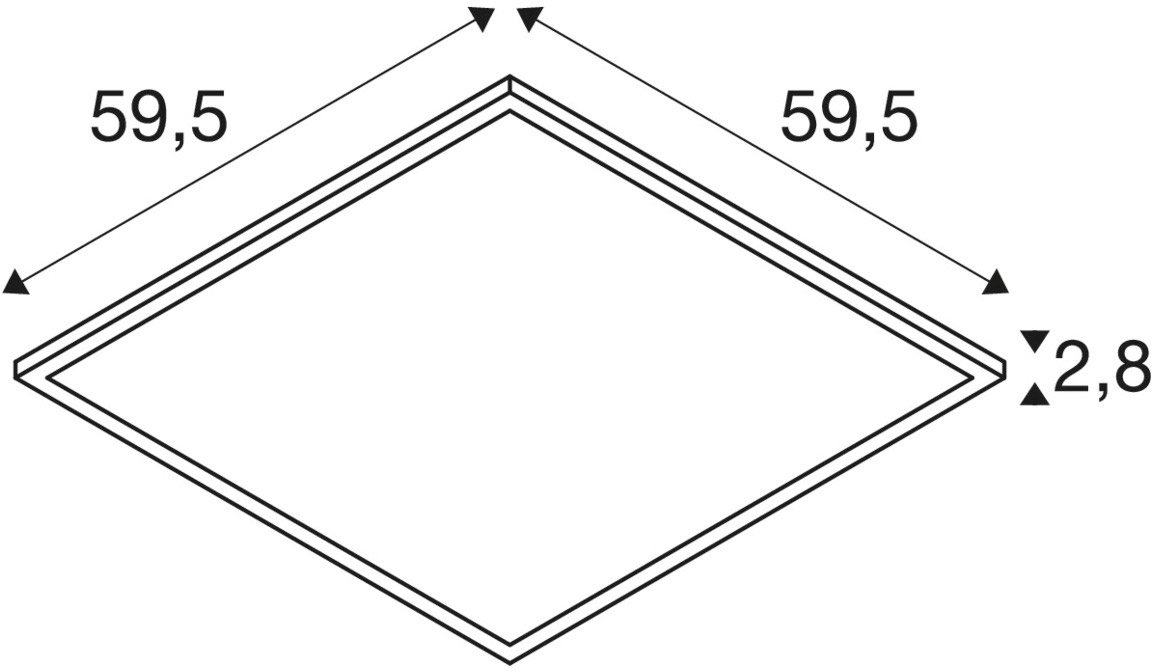

Length:	59.5 cm
Width:	59.5 cm
Height:	2.8 cm
Shape of cut-out:	square
Installation length:	58.5 cm
Installation width:	58.5 cm
Installation depth:	8 cm
Shock resistance:	0.35 joule
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	900mA
Ambient temperature:	-20 - 40 °C
Energy efficiency class:	F
Net weight:	2.1 kg
Weighted consumption:	34 kWh/1.000h
LXXBXX data:	L80B10
Service life:	50000 h
Operating efficiency (LOR):	1
Number of lights on LS B16A:	30 St.
Number of lights on LS C16A:	51 St.
Inrush current level:	30 A
Inrush current duration:	110 µs
Stroboscopic visibility measure (SVM):	0.4
