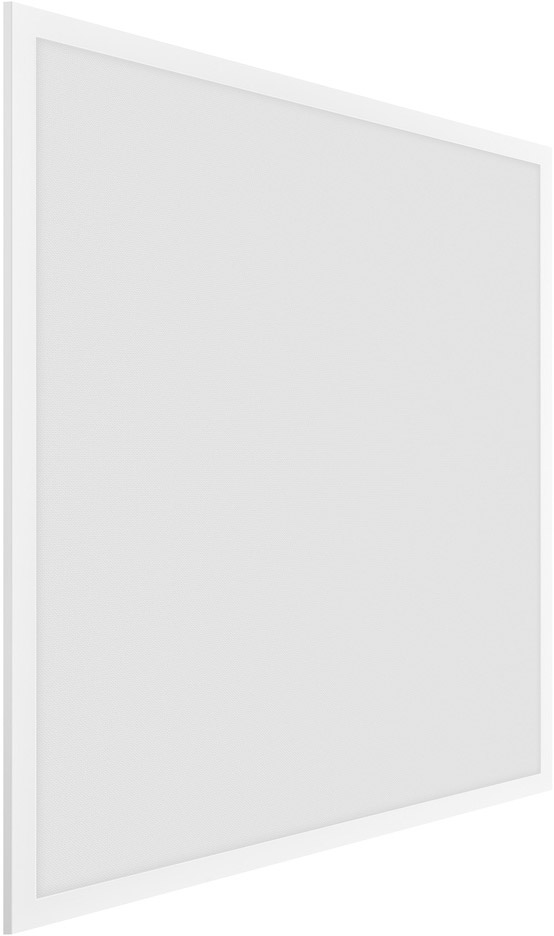

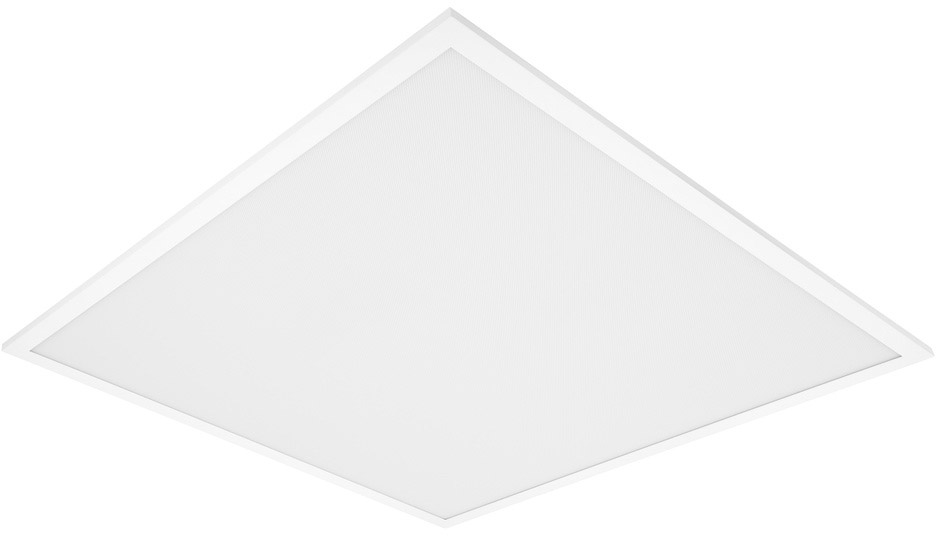

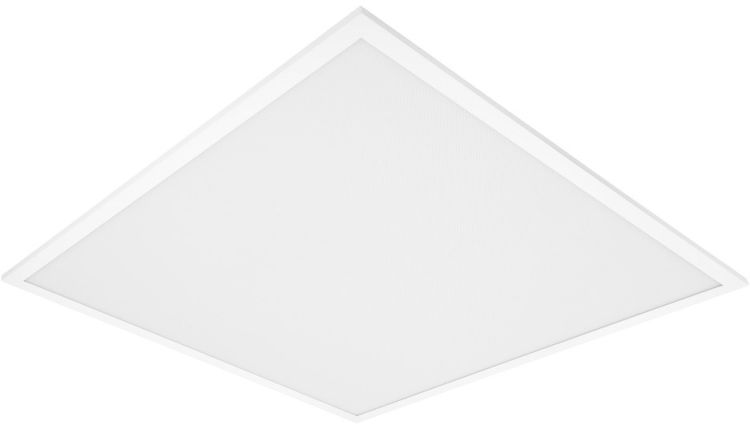

LEDVANCE BIOLUX HCL PANEL ZIGBEE GEN 2 625 S 40W TW ZB
€340.27 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414925
EAN: 4058075724563
Recessed panel luminaires, Tunable White, 110 lm/W, tool-free installation, Zigbee 3.0. Product... more
All information about the product:
"LEDVANCE BIOLUX HCL PANEL ZIGBEE GEN 2 625 S 40W TW ZB"
Recessed panel luminaires, Tunable White, 110 lm/W, tool-free installation, Zigbee 3.0. Product features:
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Very high color rendering index Ra: > 90
- Initial color consistency: 3 SDCM
- High luminous efficacy: up to 110 lm/W
- Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
- Compatible with VIVARES cloud services
- Through-wiring possible with included connector box
- Good glare reduction (UGR = 19)
- Low flicker light thanks to special electronic control gear
- 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system
- Available for grid sizes of 600 x 600 mm, 625 x 625 mm and 1200 x 300 mm
- BIOLUX HCL system: Lighting solution for single office areas with up to 48 BIOLUX HCL products
- VIVARES Zigbee system: Open-plan office solution for up to 200 BIOLUX HCL products
- Hotel and office rooms with little daylight
- Nursery and elderly homes
- Equipment / Accessories: Connector box with 5-pole terminal included
- External control gear included
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
- Accessories for several mounting options available
| Length: | 620 mm |
| Width: | 620 mm |
| Height: | 11 mm |
| Net weight: | 3350 g |
| Nominal voltage: | 240 V |
| Rated power: | 40 W |
| Energy consumption: | 40 kWh/1000 |
| Colour temperature: | 6500 K |
| Light colour: | Tunable White |
| Beam angle: | 90° |
| Luminous flux: | 4400 lm |
| Luminous efficacy: | 110 lm/W |
| Colour rendering: | 90 CRI |
| Lifetime: | 50000 h |
| Switching cycles: | 50000 |
| Dimmable: | Yes |
| Material: | Aluminum |
| Colour: | White |
| EAN: | 4058075724563 |
