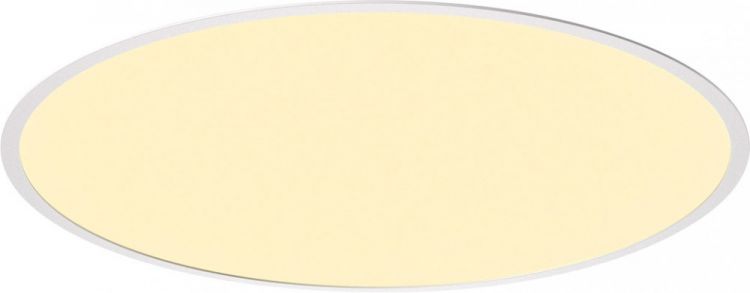

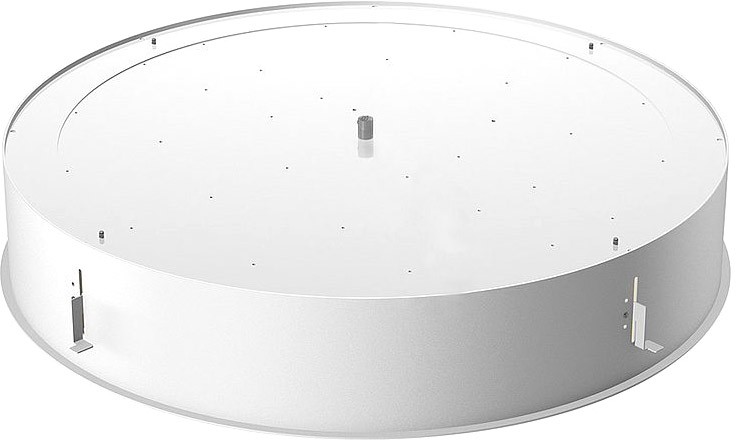

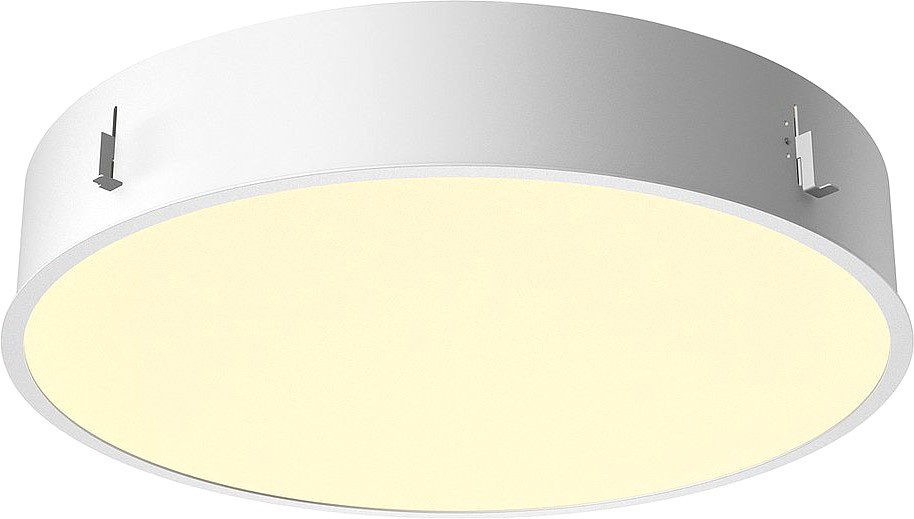

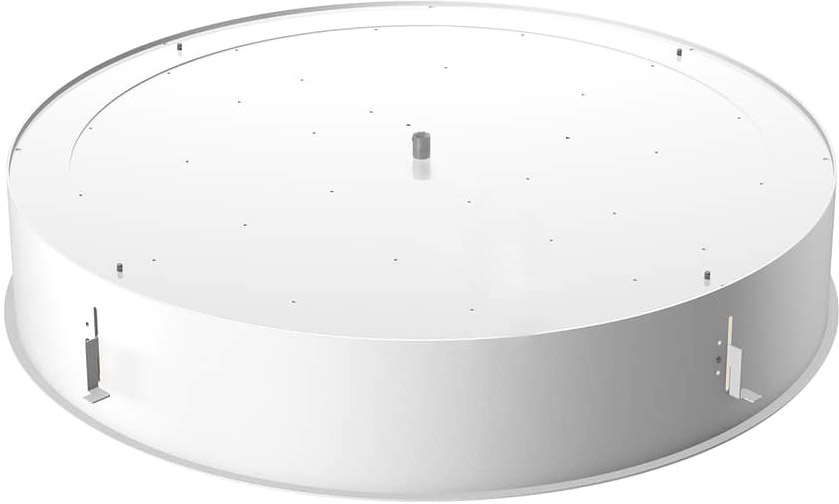

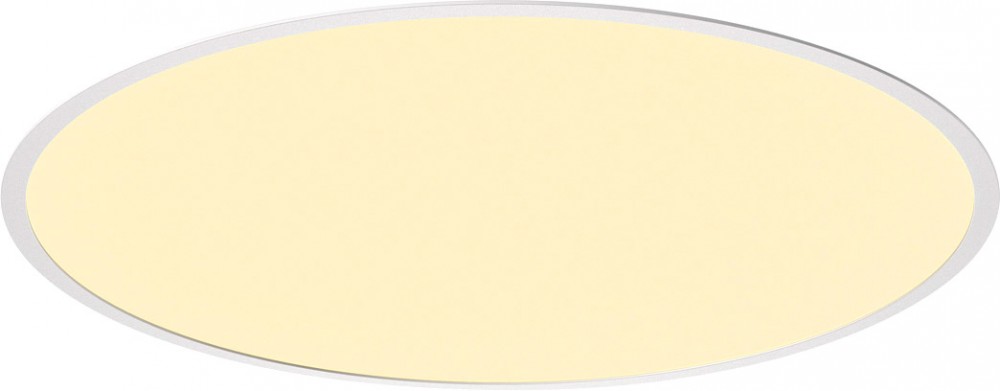

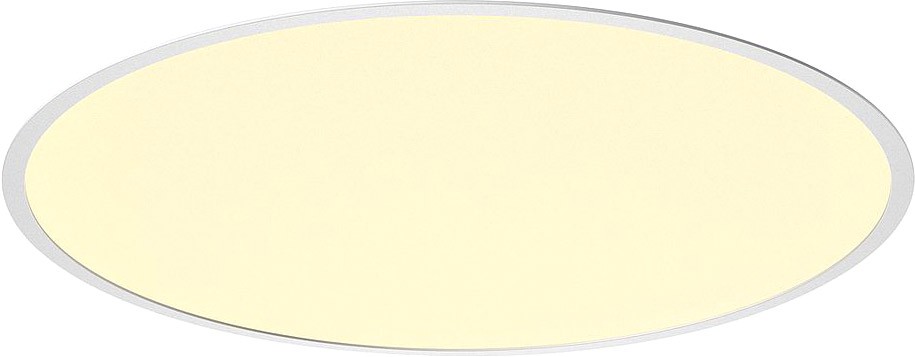

SLV MEDO 60 EL, LED indoor recessed ceiling light, frame version, white, 3000/4000K
€378.81 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110043365
EAN: 4024163221498
The MEDO FRAME variants round off the recessed lights in the MEDO series. The MEDO FRAME lights... more
All information about the product:
"SLV MEDO 60 EL, LED indoor recessed ceiling light, frame version, white, 3000/4000K"
The MEDO FRAME variants round off the recessed lights in the MEDO series. The MEDO FRAME lights blend into any room perfectly, just like the frameless versions. Understated yet still powerful, they provide bright illumination. Supplemented by an additional driver, the TRIAC recessed variant becomes dimmable and can be integrated in DALI systems.Technical data:
| Product name: | MEDO 60 |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 36 W |
| Lumen/wattage: | 130.56 lm/W |
| Luminous Flux: | 5000 lm |
| Half beam angle: | 105 ° |
| CRI: | 90 |
| UGR =: | 25 |
| CCT Switch: | Yes |
| Protection category: | III |
| IP Code: | IP 20 |
| Assembly: | Recessed |
| Assembly details: | Ceiling |
| Shape: | round |

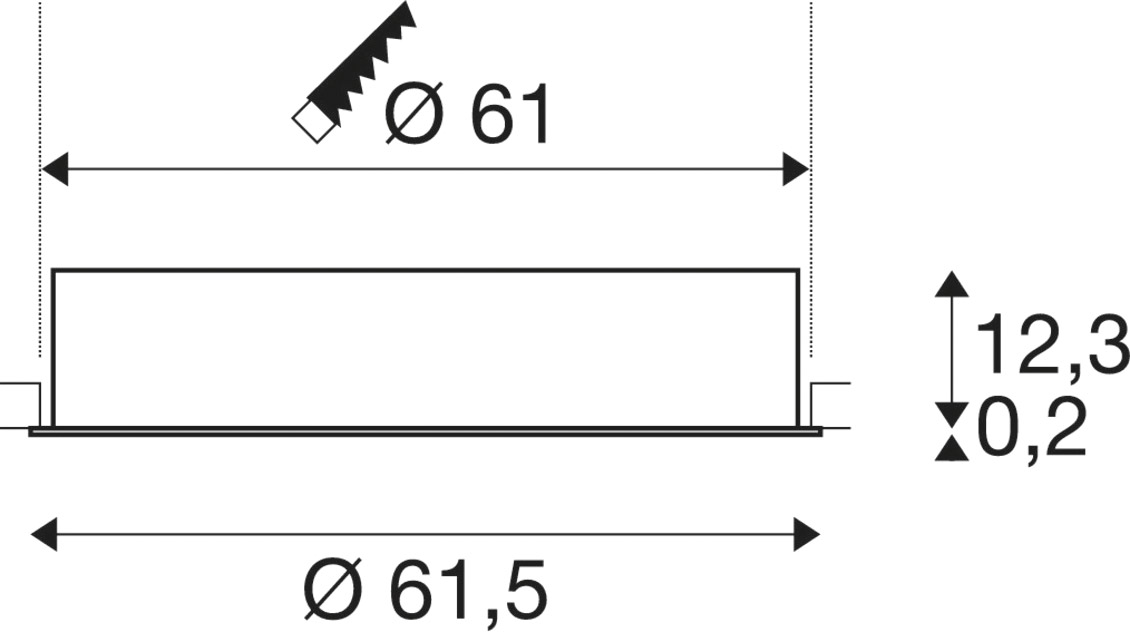

| Height: | 12.5 cm |
| Diameter: | 61.5 cm |
| Shape of cut-out: | round |
| Installation depth: | 16 cm |
| Light outlet: | direct |
| Luminous intensity distribution: | rotational symmetric |
| Colour consistency: | 3 SDCM |
| Service life: | 25000 h |
| Secondary power / secondary voltage: | 1000/1050mA |
| Ambient temperature: | 40 °C |
| Net weight: | 5.15 kg |
| Rated value luminous efficacy: | 130.56 lm/W |
| Weighted consumption: | 36 kWh/1.000h |
| LXXBXX data: | L70B50 |
