LEDVANCE PANEL 4IN1 600 600 32 W 4000 K
NEW
€49.66 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101415435
EAN: 4058075699564
NEW
LEDVANCE PANEL 4IN1 600 600 32 W 4000 K Square 600 surface panel luminaires. Product features:... more
All information about the product:
"LEDVANCE PANEL 4IN1 600 600 32 W 4000 K"

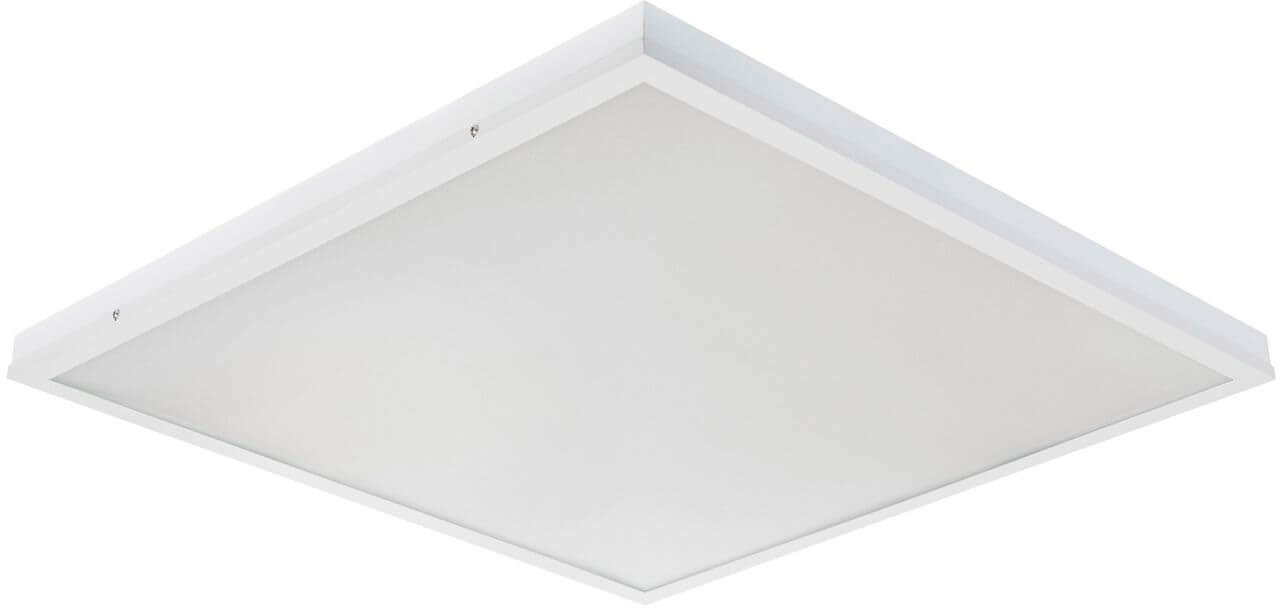

LEDVANCE PANEL 4IN1 600 600 32 W 4000 K
Square 600 surface panel luminaires. Product features: Available 600 x 600 and 300 x 1200. Luminous flux 3600 lm. Luminous efficacy: up to 112 lm/W. Glow Wire Test according to IEC 60695-2-12: 650 °C. Lifetime (L70/B50): 50,000 h (at 25 °C). Product benefits: Homogenous light distribution. The product family offers full lighting solution for different applications. Energy savings of up to 50 % compared to T5 batten luminaires. Low flicker light thanks to special electronic control gear. 5 years guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General indoor illumination. Corridors, entrance areas. Shop lighting.

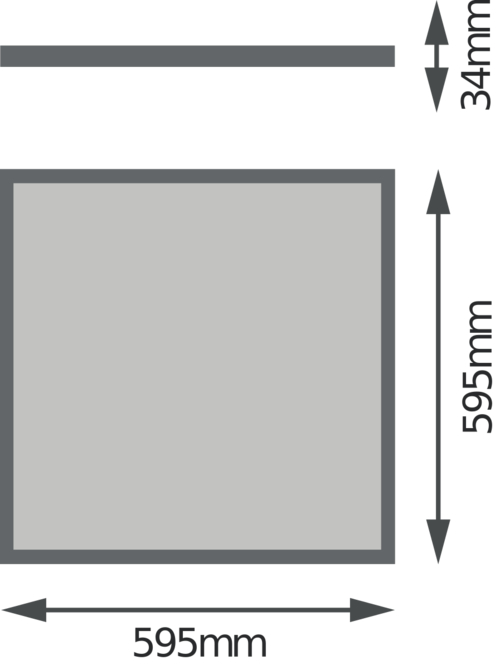

Technical data:| Length: | 595 mm |
| Width: | 595 mm |
| Height: | 34 mm |
| Weight: | 2400 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 32 W |
| Nominal current: | 143 mA |
| Energy consumption: | 32 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Luminous flux: | 3600 lm |
| Luminous efficacy: | 112 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 50000 h |
| Protection class: | IP20 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | no |
| Suitable for suspended mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | yes |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Type of grid: | Matt |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Light outlet: | Direct |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 15 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 25 |
| Impact strength: | IK02 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +50°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Flickering value Pst LM: | 1 |
| Power factor: | 0.90 |
| Stroboscope effect value SVM: | 0.4 |
| Constant light output (CLO): | no |
| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 3 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG1 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
