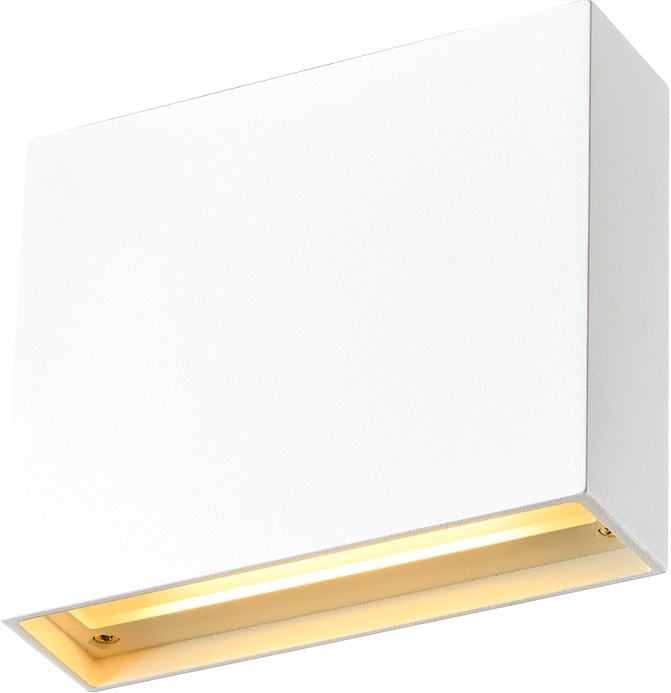

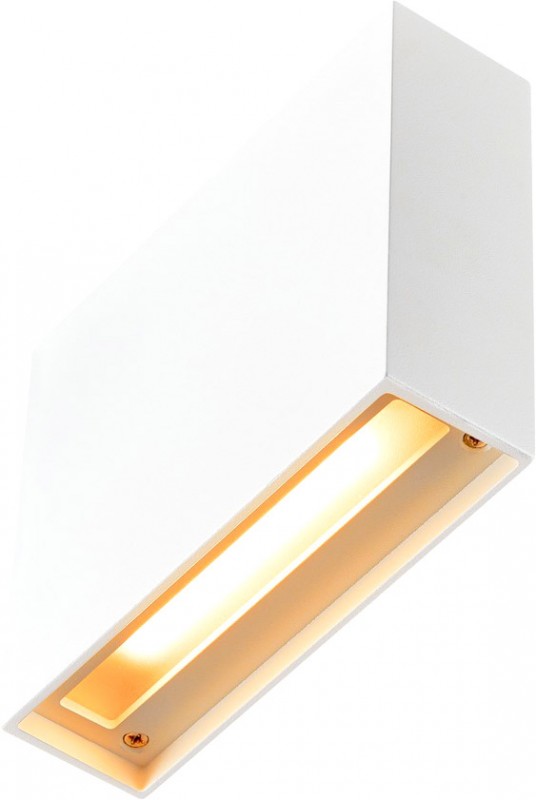

SLV QUAD FRAME 14, indoor LED surface-mounted wall light TRIAC white CCT switch 2700/3000K
€68.31 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110046695
EAN: 4024163236232
LED surface-mounted wall light QUAD FRAME 14. The invisibly installed LED emits its light... more
All information about the product:
"SLV QUAD FRAME 14, indoor LED surface-mounted wall light TRIAC white CCT switch 2700/3000K"

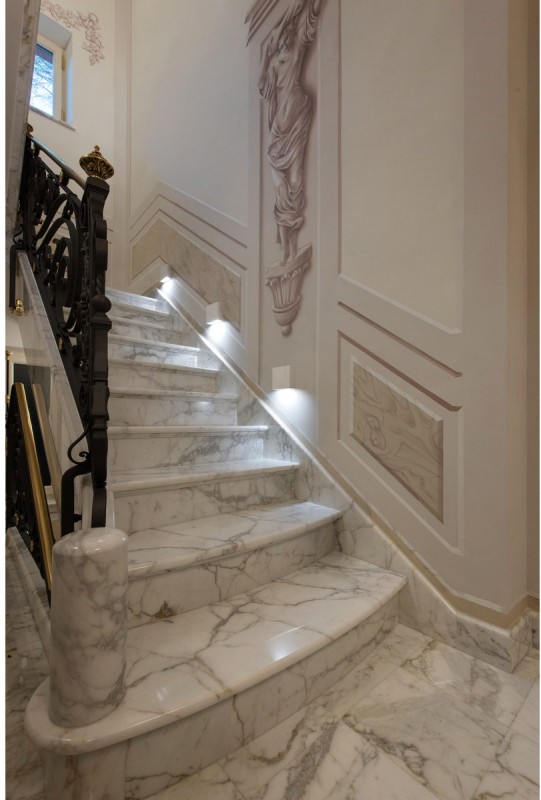

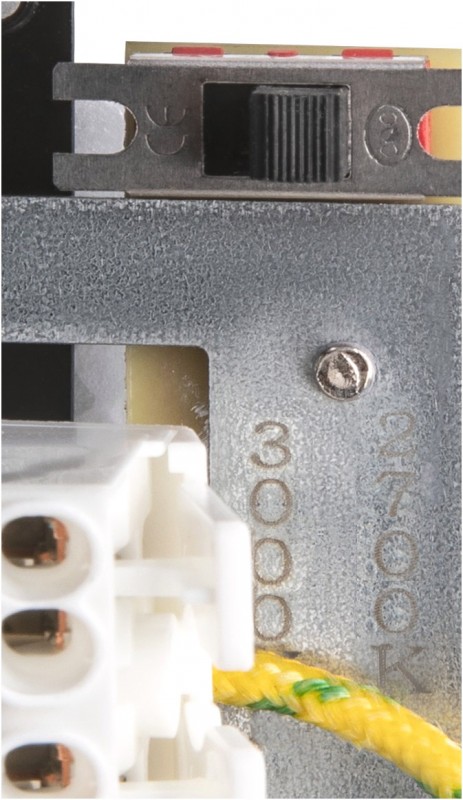

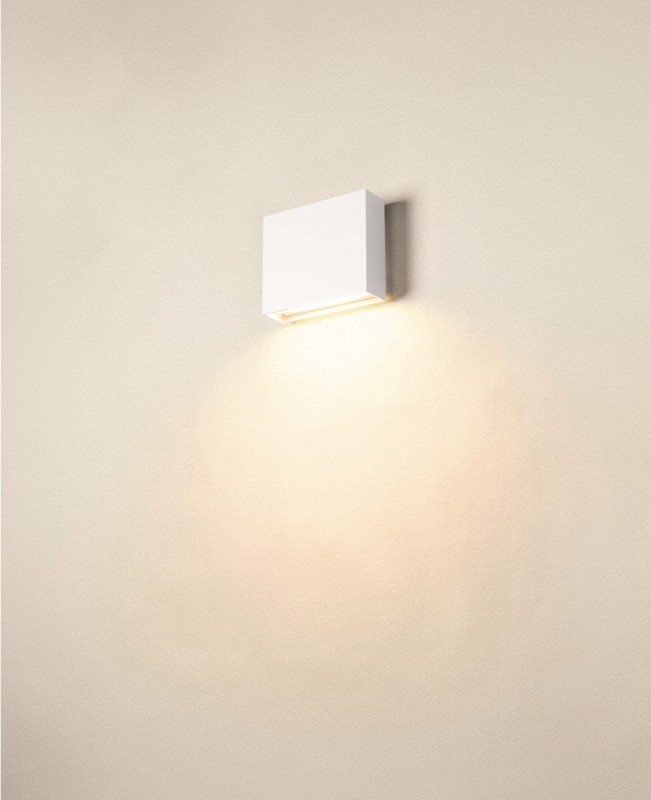

LED surface-mounted wall light QUAD FRAME 14. The invisibly installed LED emits its light indirectly onto the surface to be illuminated. This makes glare-free illumination of walkways and staircases possible, for example. The QUAD FRAME 14 recessed fitting is available in white colour version. The light colour can be switched between 2700K and 3000K during installation using the built-in CCT switch. This luminaire contains built-in LED lamps.Technical data:
| Product name: | QUAD FRAME 14 |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 4.4 W |
| Lumen/wattage: | 37.5 lm/W |
| Luminous Flux: | 175 lm |
| Half beam angle: | 95 ° |
| CRI: | 90 |
| CCT Switch: | Yes |
| Protection category: | I |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | square |

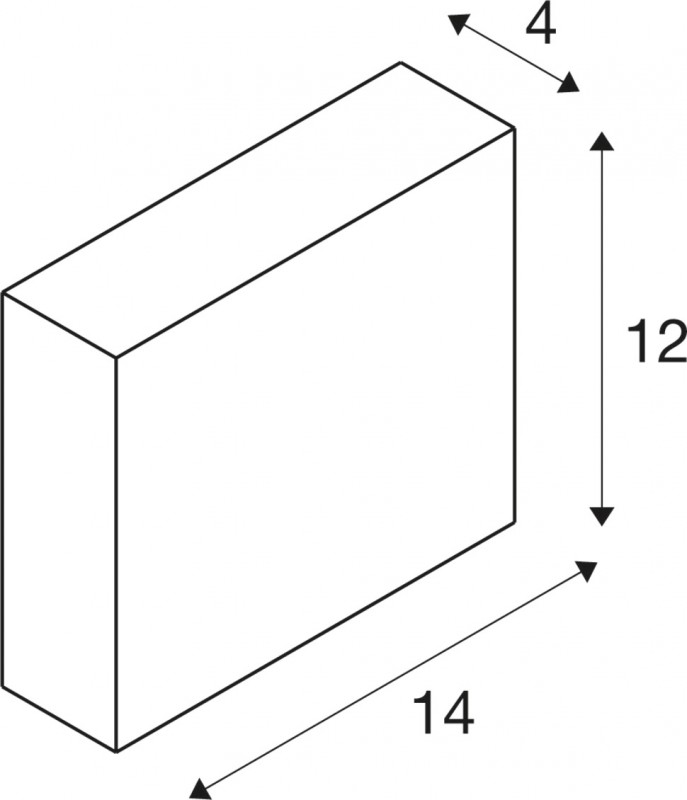

| Width: | 14 cm |
| Height: | 12 cm |
| Colour consistency: | 3 SDCM |
| Service life: | 30000 h |
| Primary nominal voltage: | 100-240V ~50/60Hz |
| Secondary power / secondary voltage: | 350mA |
| Ambient temperature: | -20 - 40 °C |
| Net weight: | 0.41 kg |
| Rated value luminous efficacy: | 37.5 lm/W |
| Weighted consumption: | 4.4 kWh/1.000h |
| LXXBXX data: | L70B50 |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV QUAD FRAME 14, indoor LED surface-mounted wall light TRIAC white CCT switch 2700/3000K"
| Document type | File size | |
|
Operating instructions | 0.36 MB |
|
|
Operating instructions | 0.39 MB |
|
|
Data sheet | 0.20 MB |
|
|
Data sheet | 0.21 MB |
|
|
Technical drawing / illustration | 0.02 MB |
|
|
Certificate | 0.31 MB |
|
|
Certificate | 0.31 MB |
|
|
EPREL-Product data sheet | 0.22 MB |
