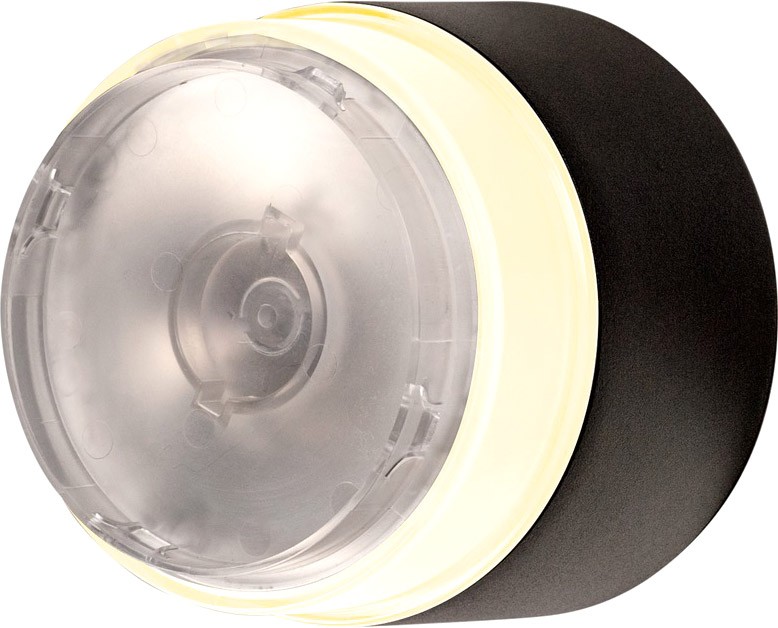

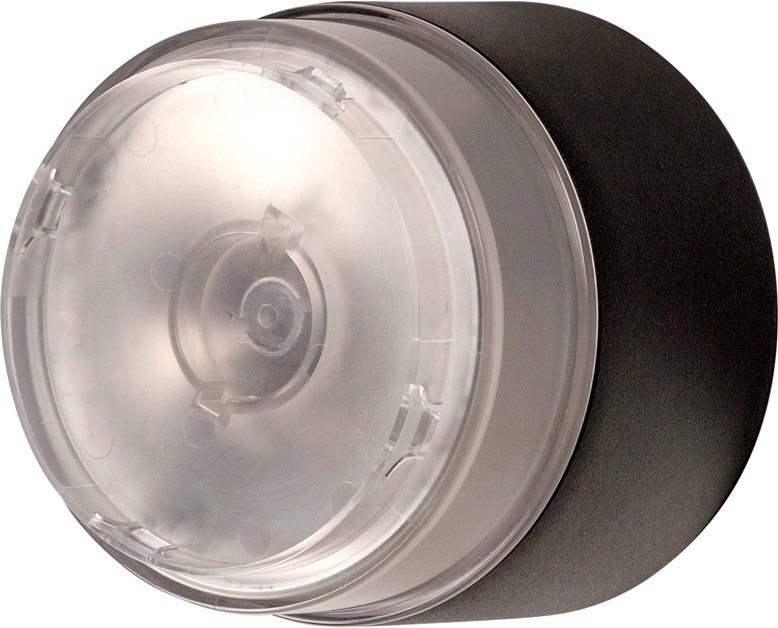

SLV MANA BASIS WL, indoor LED wall-mounted light round anthracite CCT switch 2700/3000K
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 110050910
EAN: 4024163248075
The dimmable wall-mounted lights of the MANA family will impress you with their indirect light... more
All information about the product:
"SLV MANA BASIS WL, indoor LED wall-mounted light round anthracite CCT switch 2700/3000K"

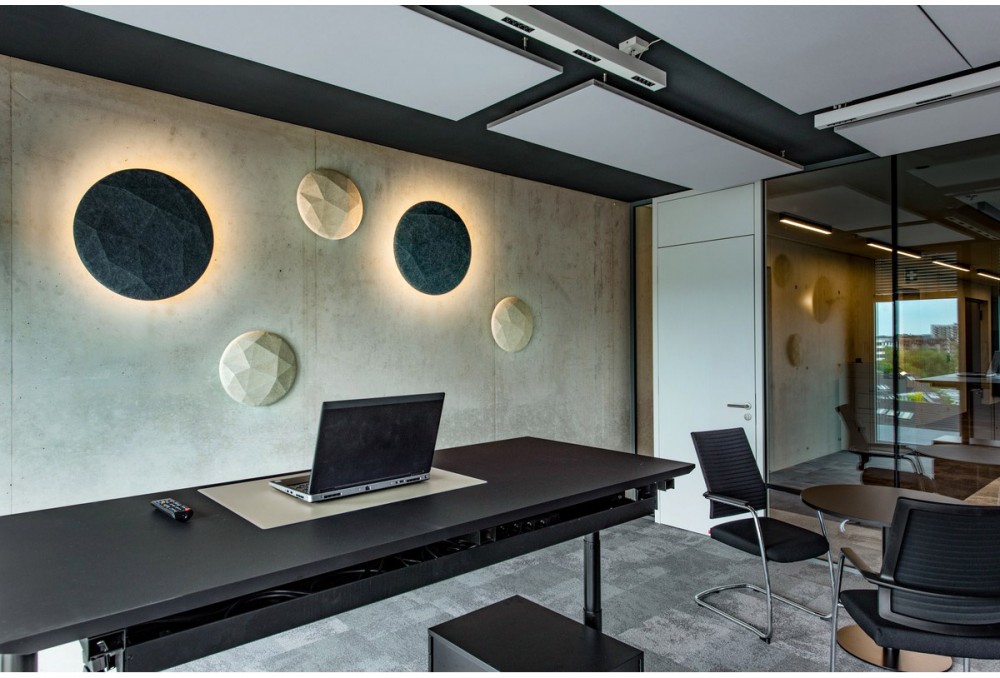

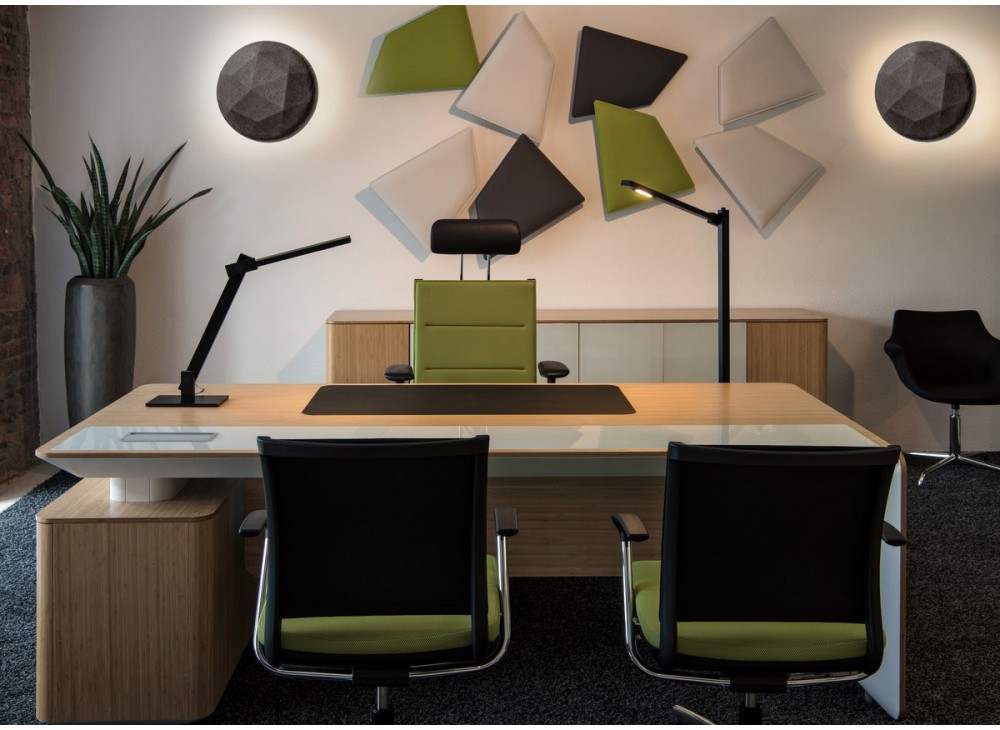

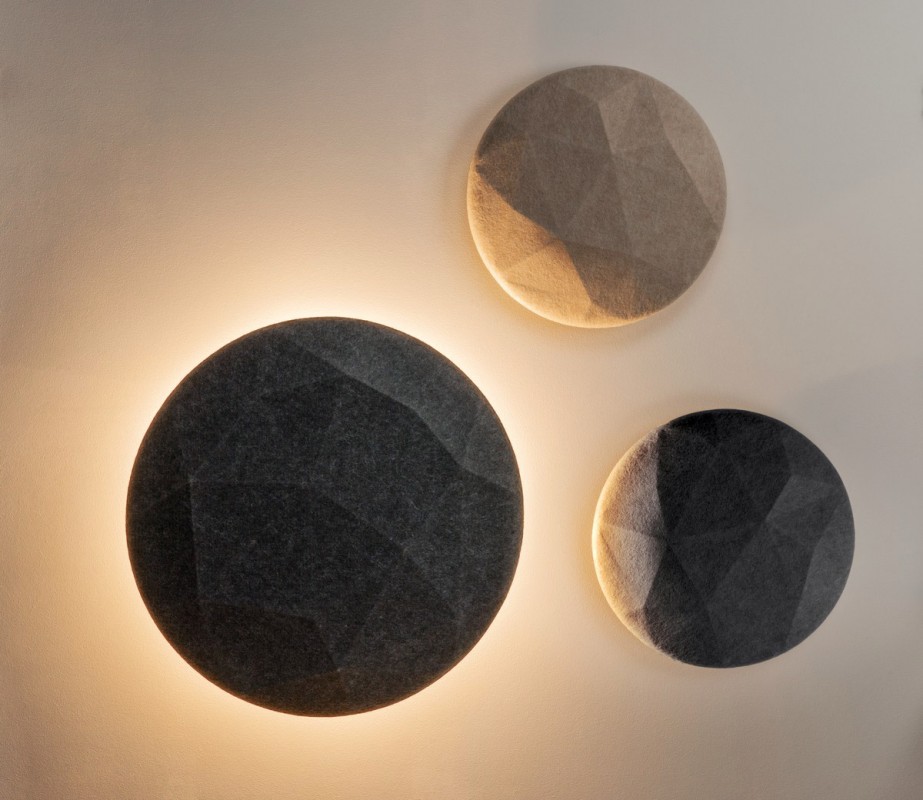

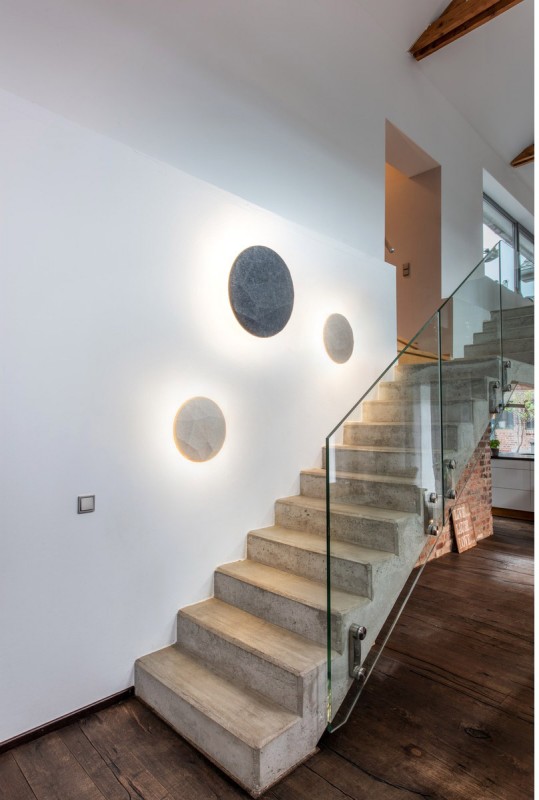

The dimmable wall-mounted lights of the MANA family will impress you with their indirect light with an exciting corona effect. Their warm white colour temperature (2700/3000K) can be altered before installation using the CCT switch. Please note that the MANA BASIS must be combined with the matching MANA shade (1004660, 100466, 1004662, 1004663).Technical data:
| Product name: | MANA BASE |
| Colour: | anthracite |
| Material: | Aluminium |
| electrical power: | 15 W |
| Lumen/wattage: | 53.33 lm/W |
| Luminous Flux: | 820 lm |
| CRI: | 90 |
| Dimmable: | Yes |
| Dimming technology: | trailing edge |

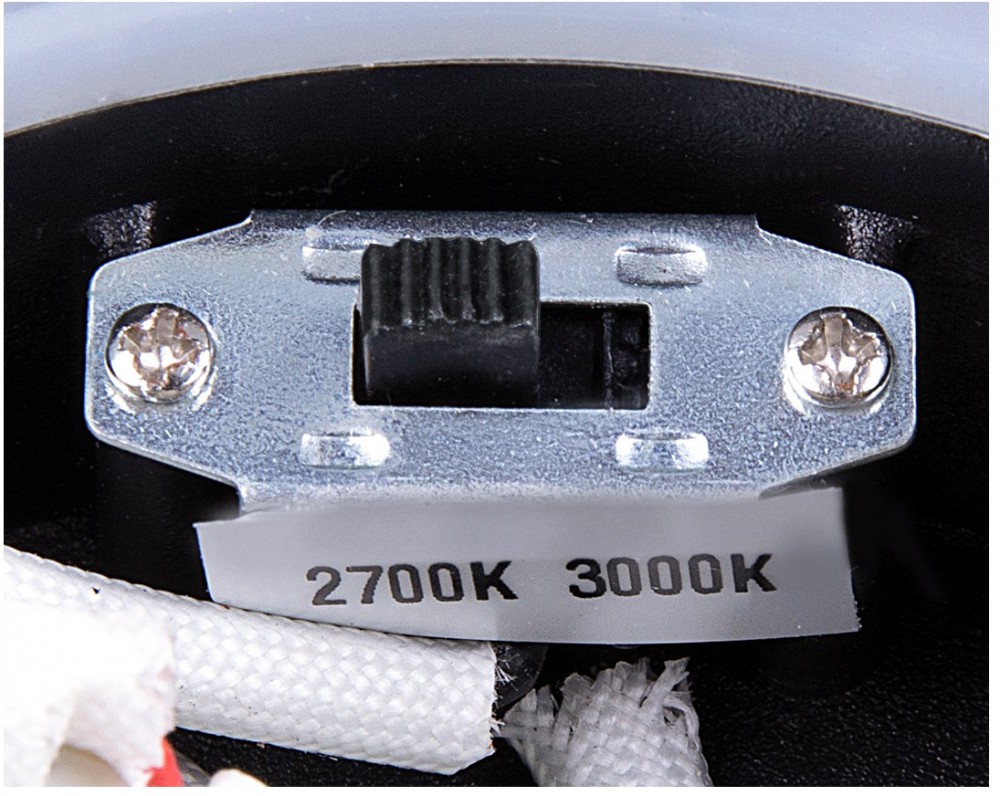

| CCT Switch: | Yes |
| Protection category: | I |
| IP Code: | IP 20 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | round |

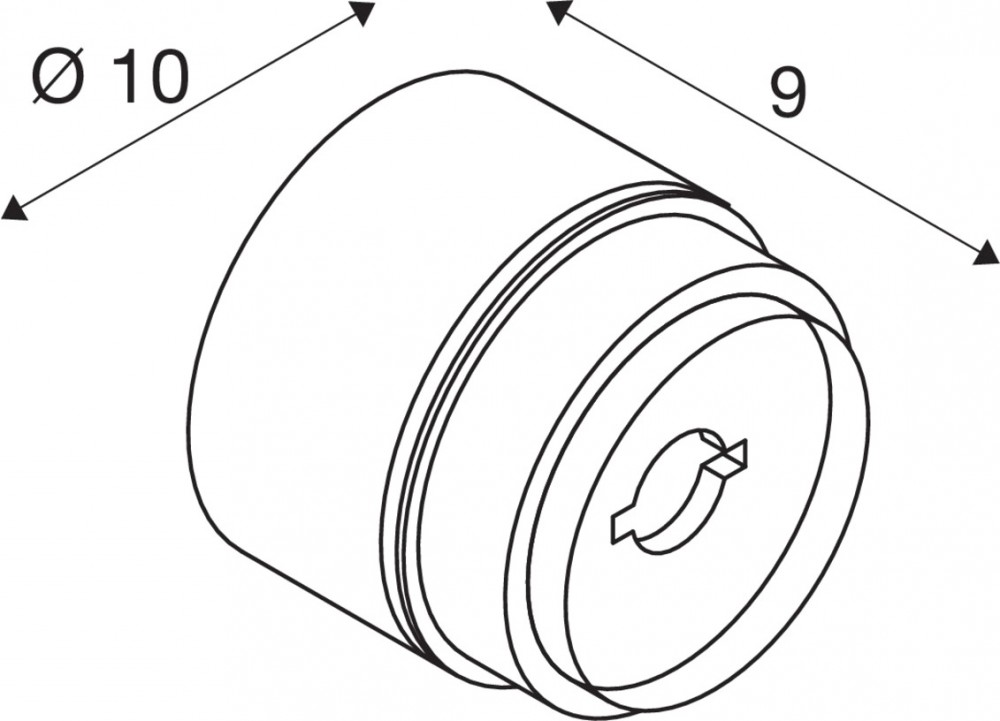

| Height: | 9 cm |
| Diameter: | 10 cm |
| Light outlet: | diffuse |
| Colour consistency: | 6 SDCM |
| Service life: | 30000 h |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 350mA |
| Ambient temperature: | -20 - 40 °C |
| Net weight: | 0.53 kg |
| Rated value luminous efficacy: | 53.33 lm/W |
| Weighted consumption: | 15 kWh/1.000h |
| LXXBXX data: | L70B50 |
