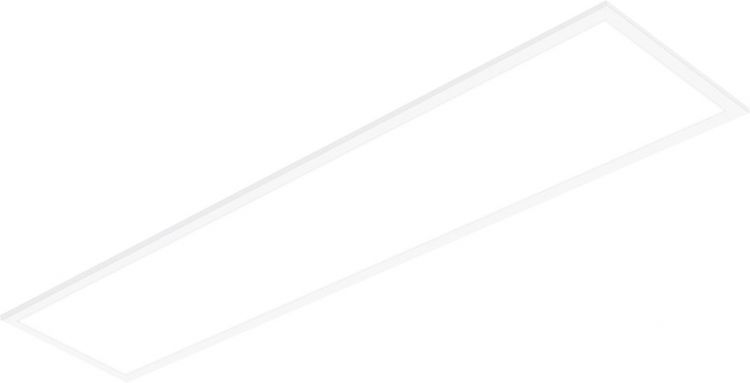

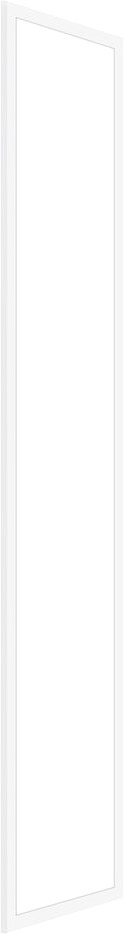

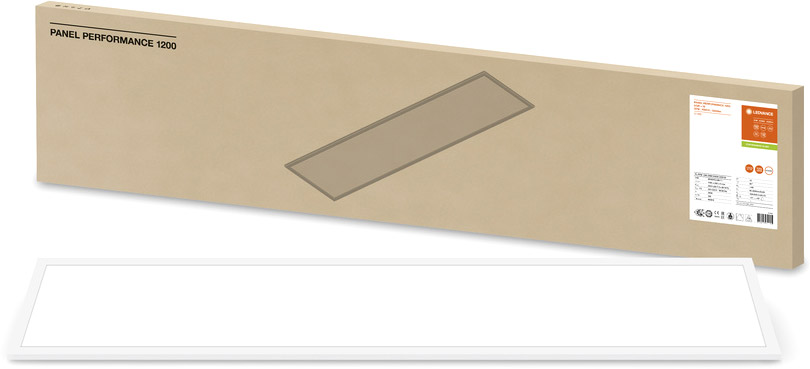

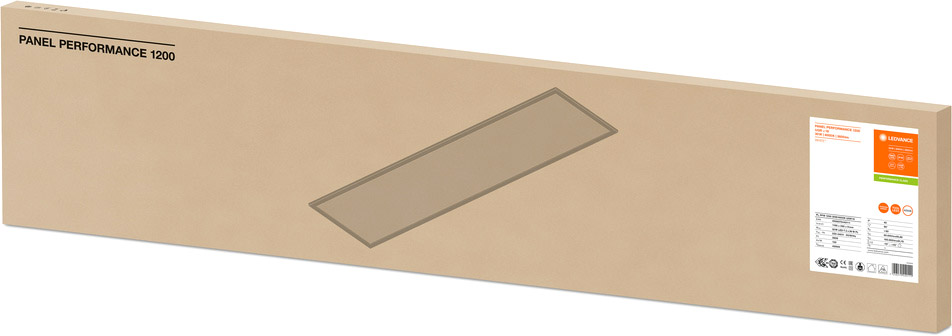

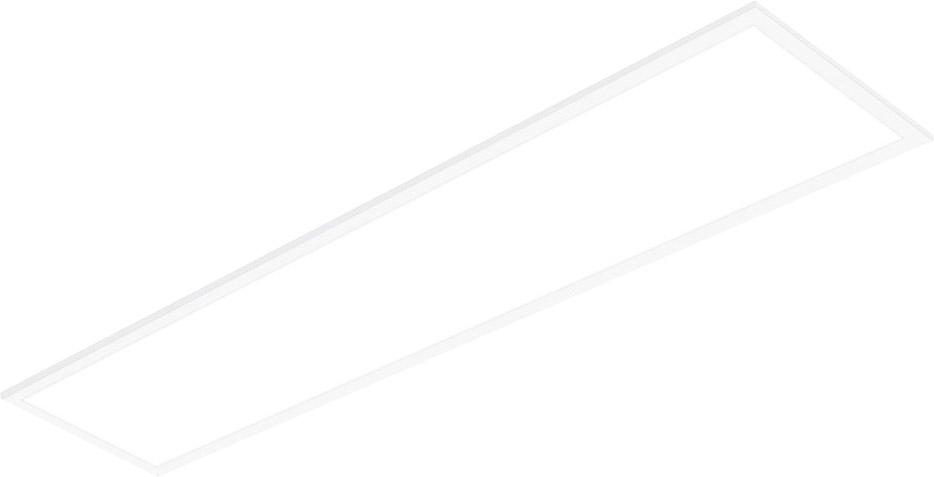

LEDVANCE PANEL PERFORMANCE 1200x300 UGR < 19 30 W 4000 K UGR19
This article is currently not available.
€75.00 *
€99.00 *
(24.24% Saved)
Availability:
Currently not available
Currently not available
Item number: 101404255
EAN: 4058075440111
MPN: 4058075440111
Rectangular recessed panel luminaires, tool-free installation and low glare, for 1200 x 300 mm... more
All information about the product:
"LEDVANCE PANEL PERFORMANCE 1200x300 UGR < 19 30 W 4000 K UGR19"
Rectangular recessed panel luminaires, tool-free installation and low glare, for 1200 x 300 mm ceiling systems. Product features:
- Extruded aluminum frame
- Polystyrene diffuser
- 3-pole terminal block, cable cross section up to 3 x 2.5 mm²
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm² (DALI versions)
- Luminaire versions with IoT-ready DALI-2 driver available
- Versions available with CRI 90
- Lifetime (L80/B10): up to 60,000 h (at 25 °C)
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 120 lm/W
- Good glare reduction (UGR
| Length: | 1195 mm |
| Width: | 295 mm |
| Height: | 9 mm |
| Net weight: | 1700 g |
| LED type: | SMD |
| Nominal voltage: | 240 V |
| Nominal current: | 280 mA |
| Rated power: | 30 W |
| Energy consumption: | 30 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 90 ° |
| Luminous flux: | 3600 lm |
| Colour rendering: | 80 CRI |
| Lifetime: | 100000 h |
| Switching cycles: | 50000 |
| Energy efficiency class: | D |
| Dimmable: | No |
| Material: | Aluminum |
| Colour: | White |
| EAN: | 4058075440111 |
