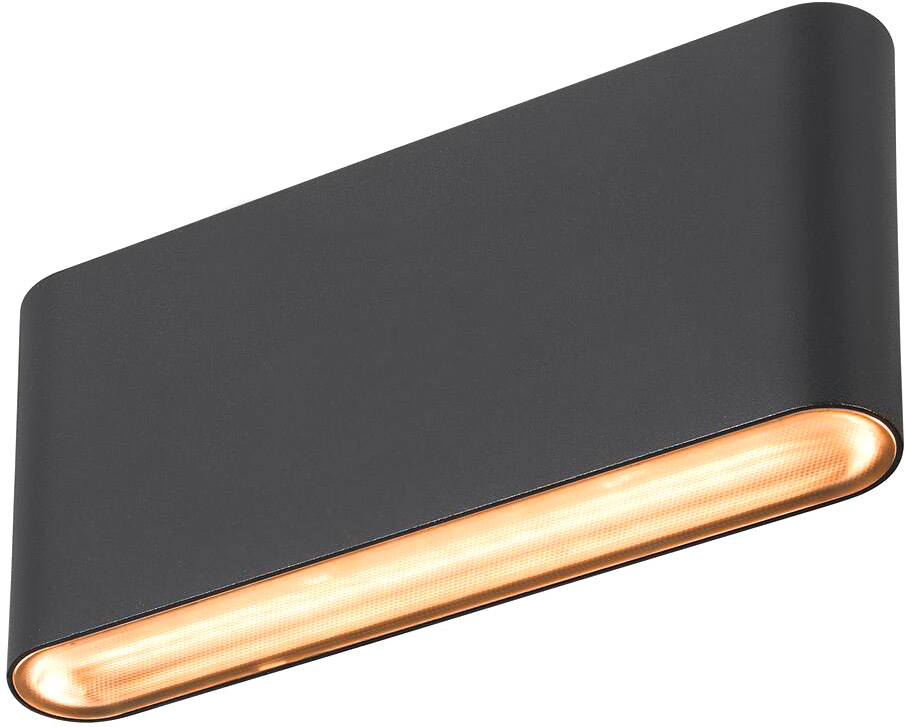

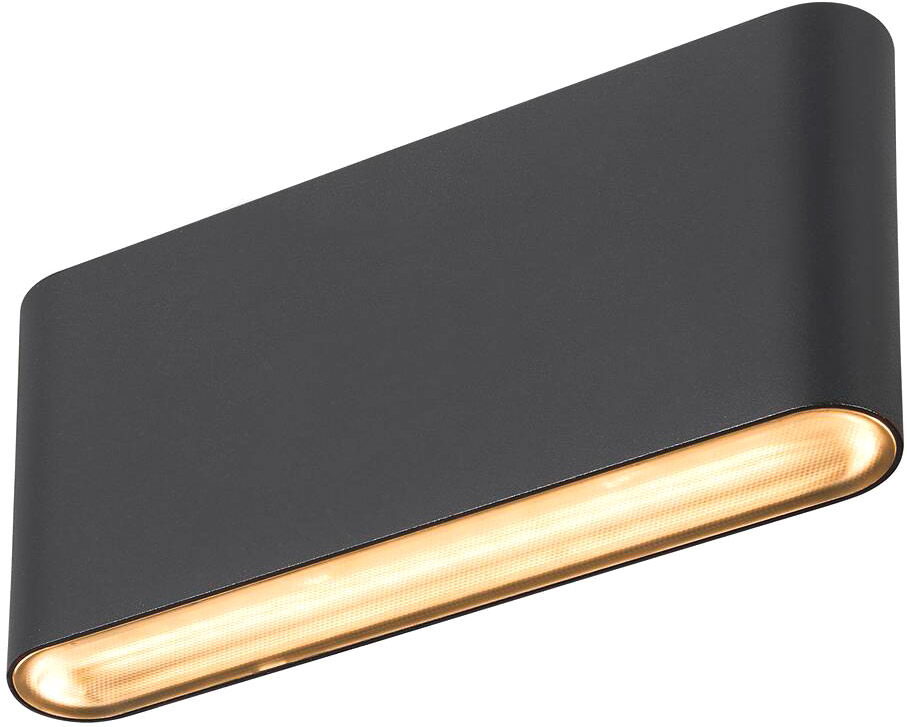

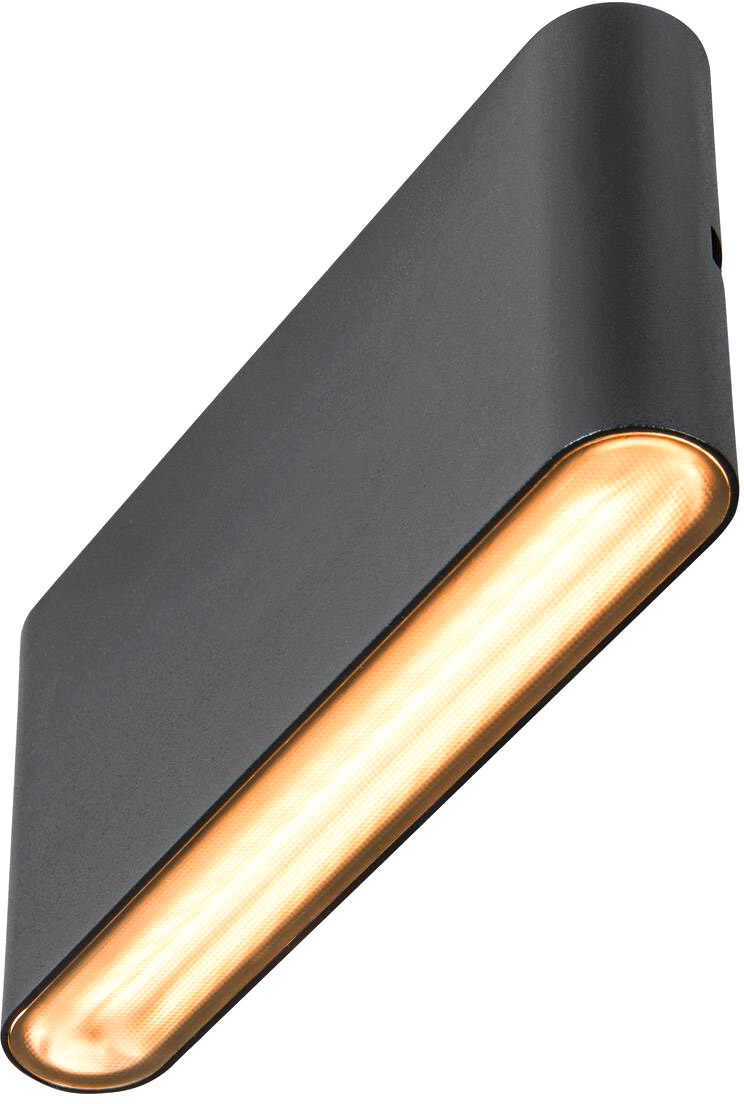

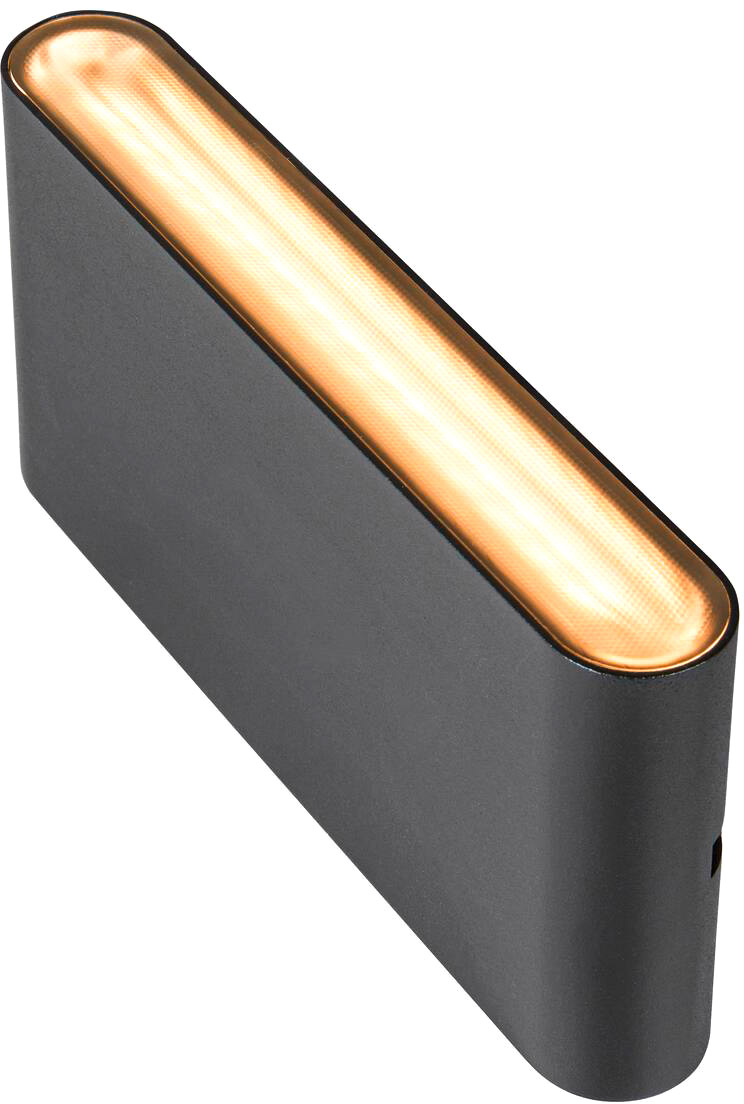

SLV OVAL 18 WL, wall-mounted light 2700/3000K, 10W, black
€62.34 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110059140
EAN: 4024163273442
Flat design, oval shape: the OVAL wall-mounted light available in black or white creates a real... more
All information about the product:
"SLV OVAL 18 WL, wall-mounted light 2700/3000K, 10W, black"

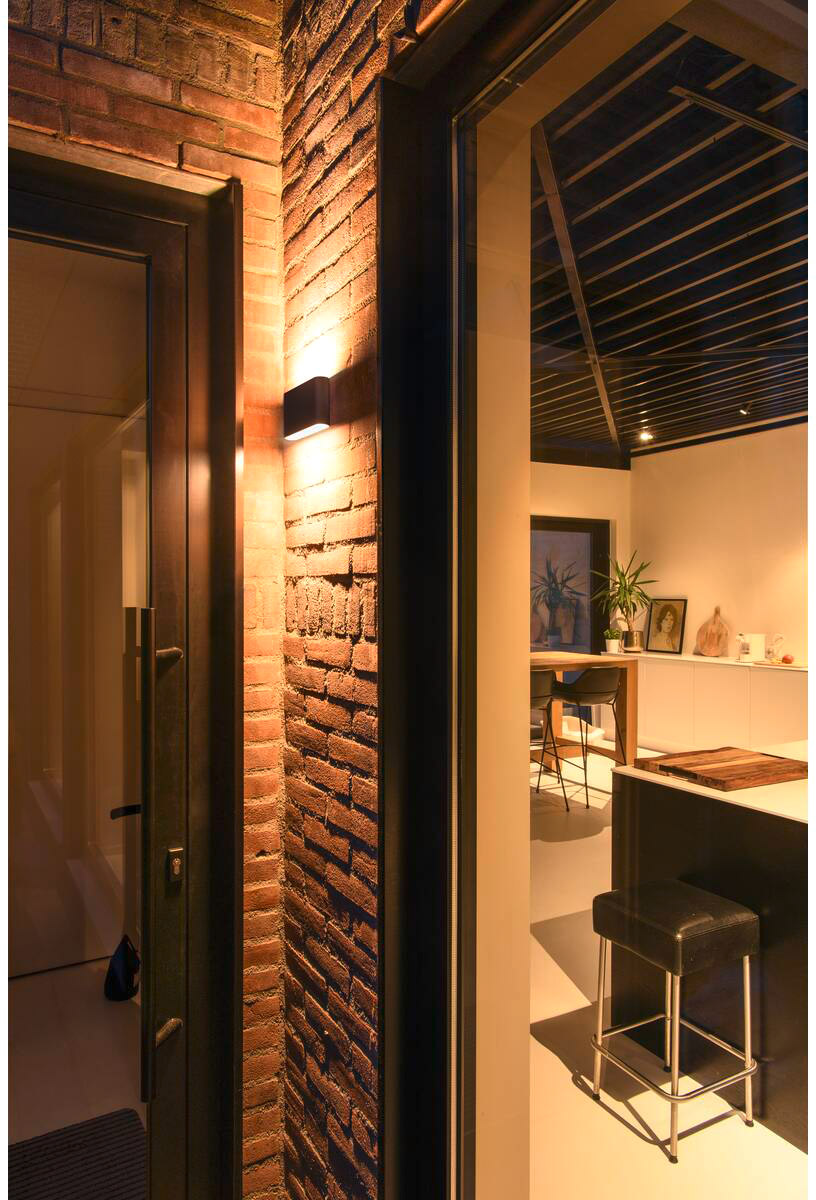

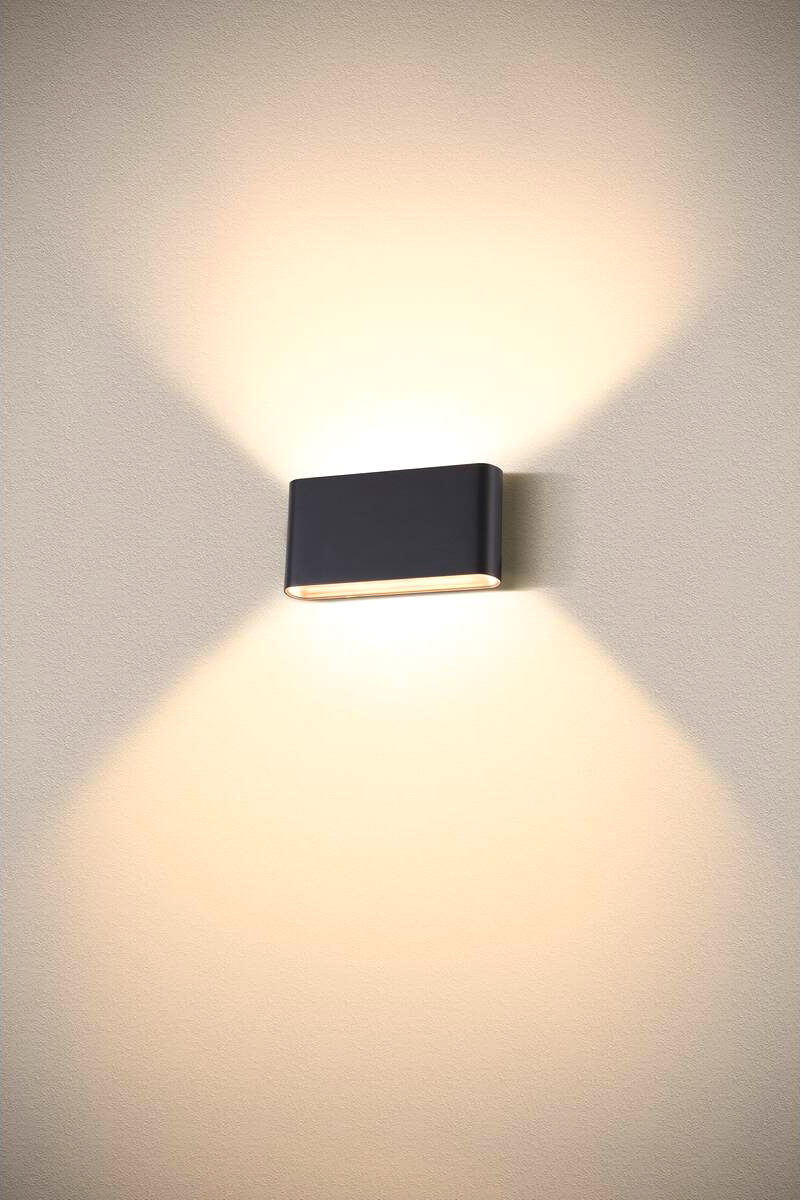

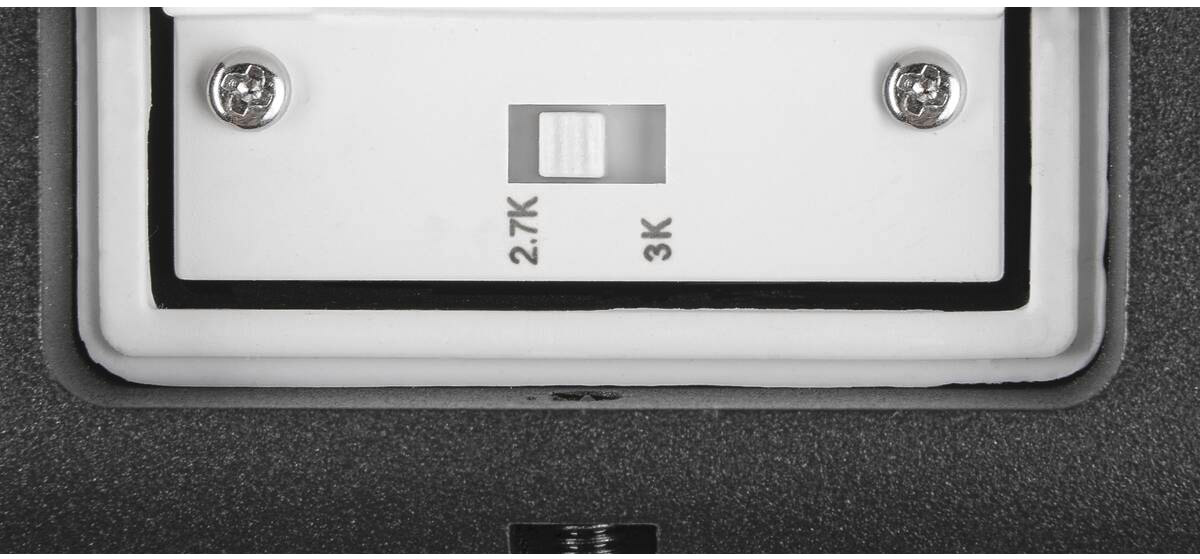

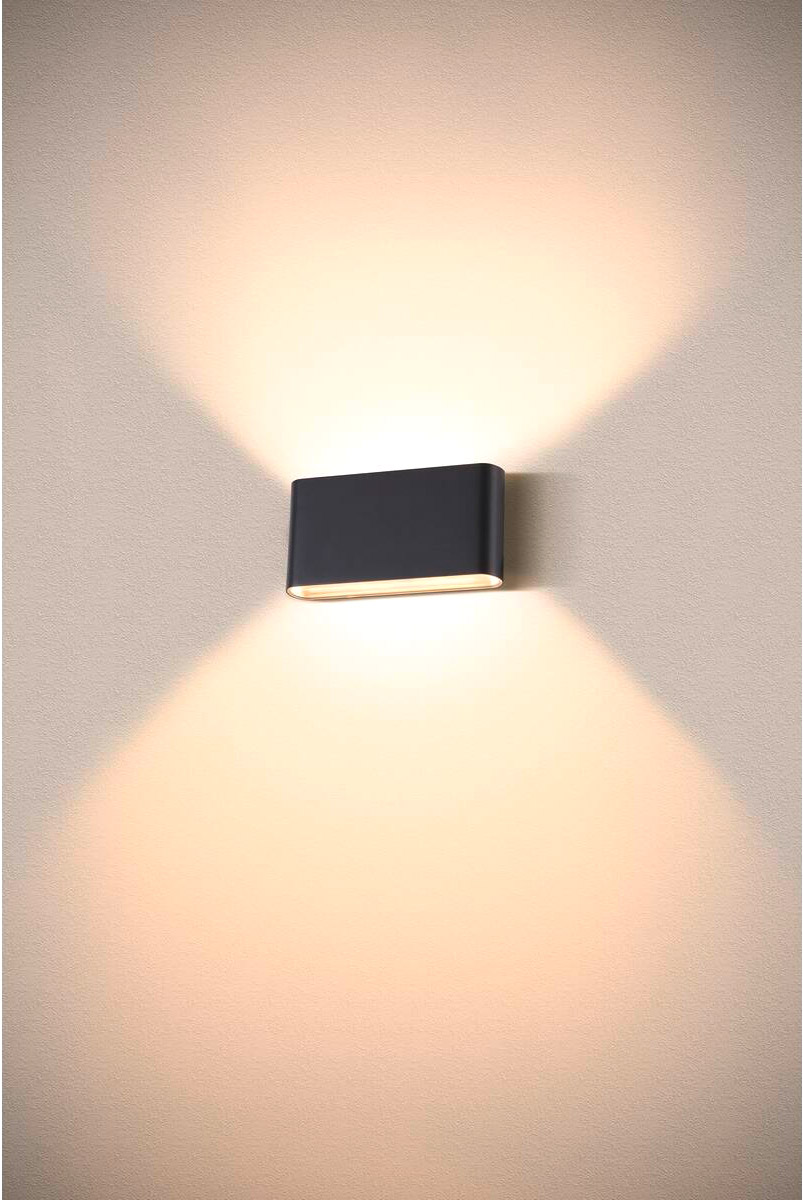

Flat design, oval shape: the OVAL wall-mounted light available in black or white creates a real indoor feature. The light is distributed up and down the wall, illuminating it with a diffused glow that creates a sense of real comfort. The colour temperature can be adjusted between a warm white 2700 and 3000 Kelvin via a CCT switch prior to installation for added effect. In typical SLV fashion, it can be quickly and easily assembled and connected to a 230V mains voltage.Technical data:
Product name: | OVAL 18 |
Colour: | black |
Material: | Aluminium |
electrical power: | 9.3 W |
Lumen/wattage: | 92.47 lm/W |
Luminous Flux: | 860 lm |
CRI: | 80 |
Different light outlets: | 2 |
Protection category: | I |
IP Code: | IP 65 |
Assembly: | Surface |
Assembly details: | Wall |
Shape: | square |

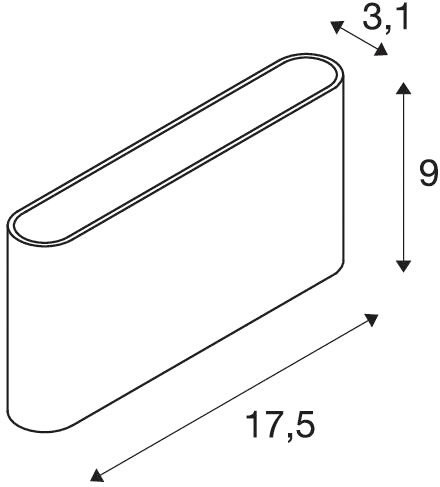

Width: | 17.5 cm |
Height: | 9 cm |
Shock resistance category: | IK08 |
Shock resistance: | 5 joule |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 275mA |
Ambient temperature: | -20 - 45 °C |
Energy efficiency class: | D |
Net weight: | 0.6 kg |
Rated value luminous efficacy: | 92.47 lm/W |
Weighted consumption: | 9.3 kWh/1.000h |
LXXBXX data: | L70B50 |
Service life: | 50000 h |
Operating efficiency (LOR): | 0.72 |
Number of lights on LS B16A: | 71 St. |
Number of lights on LS C16A: | 118 St. |
Inrush current level: | 13.6 A |
Inrush current duration: | 175 µs |
Glass temperature (light emission): | 45 °C |
Risk group: | 1 |
