SLV OVAL 18 WL, wall-mounted light 2700/3000K, 10W, white
€60.04 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110059145
EAN: 4024163273435
Flat design, oval shape: the OVAL wall-mounted light available in black or white creates a real... more
All information about the product:
"SLV OVAL 18 WL, wall-mounted light 2700/3000K, 10W, white"

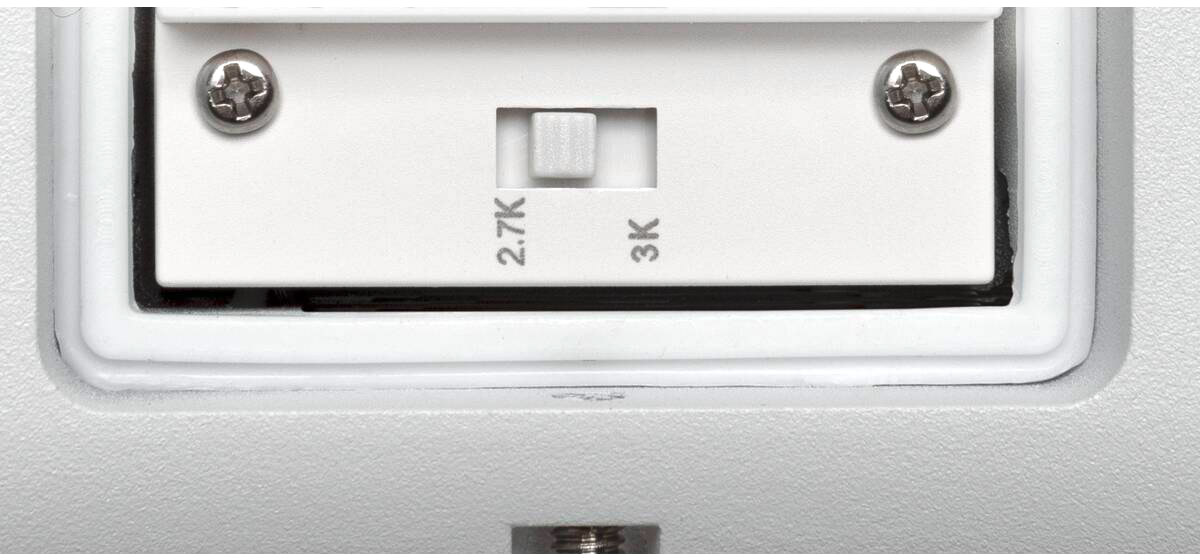

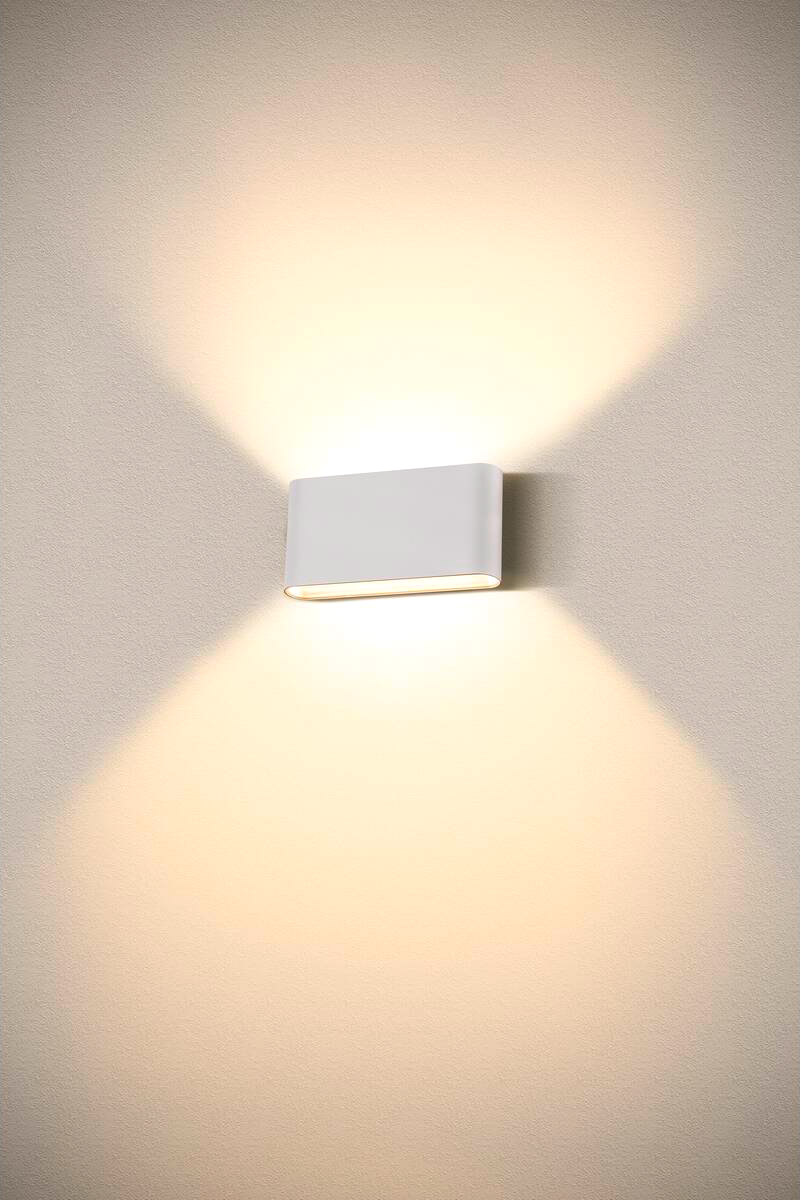

Flat design, oval shape: the OVAL wall-mounted light available in black or white creates a real indoor feature. The light is distributed up and down the wall, illuminating it with a diffused glow that creates a sense of real comfort. The colour temperature can be adjusted between a warm white 2700 and 3000 Kelvin via a CCT switch prior to installation for added effect. In typical SLV fashion, it can be quickly and easily assembled and connected to a 230V mains voltage.Technical data:
| Product name: | OVAL 18 |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 9.3 W |
| Lumen/wattage: | 92.47 lm/W |
| Luminous Flux: | 860 lm |
| CRI: | 80 |
| Different light outlets: | 2 |
| Protection category: | I |
| IP Code: | IP 65 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | square |

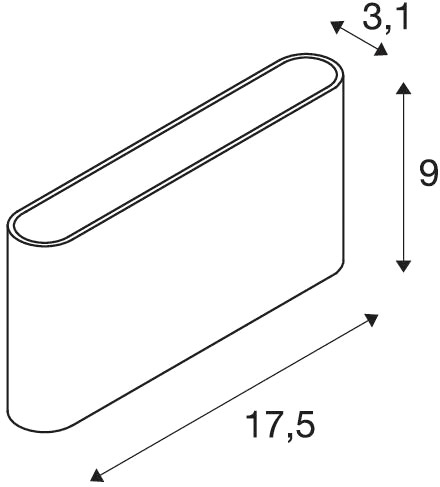

| Width: | 17.5 cm |
| Height: | 9 cm |
| Shock resistance category: | IK08 |
| Shock resistance: | 5 joule |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 275mA |
| Ambient temperature: | -20 - 45 °C |
| Energy efficiency class: | D |
| Net weight: | 0.6 kg |
| Rated value luminous efficacy: | 92.47 lm/W |
| Weighted consumption: | 9.3 kWh/1.000h |
| LXXBXX data: | L70B50 |
| Service life: | 50000 h |
| Operating efficiency (LOR): | 0.72 |
| Number of lights on LS B16A: | 71 St. |
| Number of lights on LS C16A: | 118 St. |
| Inrush current level: | 13.6 A |
| Inrush current duration: | 175 µs |
| Glass temperature (light emission): | 45 °C |
| Risk group: | 1 |
