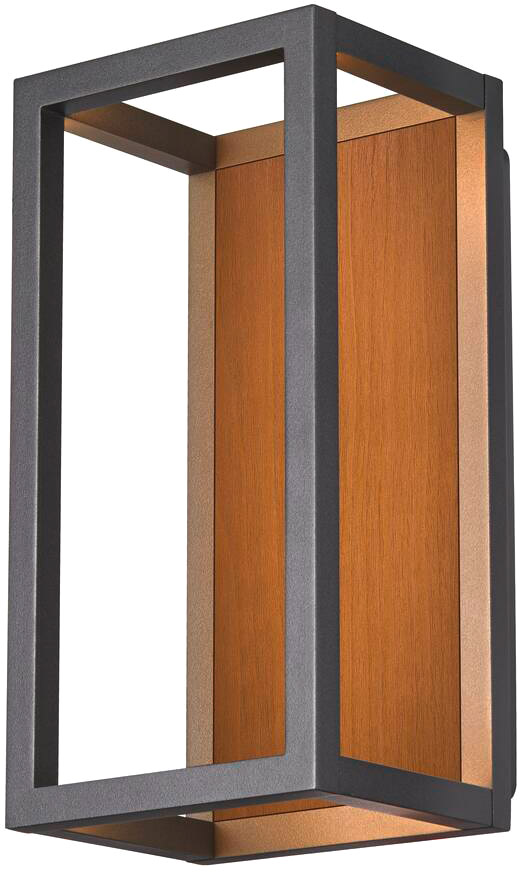

SLV QUADRULO, wall-mounted light, 3000K, anthracite/brown
€102.80 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110059250
EAN: 4024163274814
Aluminium LED wall light from the QUADRULO range with a clear illuminated area. Thanks to its... more
All information about the product:
"SLV QUADRULO, wall-mounted light, 3000K, anthracite/brown"
Aluminium LED wall light from the QUADRULO range with a clear illuminated area. Thanks to its high IP rating, this light is suitable for outdoor use and comes with or without a motion sensor. The electrical connection can be connected directly to the 230V mains power supply.Technical data:
| Product name: | QUADRULO |
| Colour: | anthracite |
| Material: | Aluminium |
| electrical power: | 7.4 W |
| Lumen/wattage: | 37.84 lm/W |
| Luminous Flux: | 280 lm |
| Colour temperature: | 3000 Kelvin |
| CRI: | 80 |
| Protection category: | I |
| IP Code: | IP 55 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | square |
| Width: | 12.5 cm |
| Height: | 25 cm |
| Depth: | 13.2 cm |
| Shock resistance category: | IK04 |
| Primary nominal voltage: | 100-277V ~50/60Hz |
| Secondary power / secondary voltage: | 350mA |
| Ambient temperature: | -20 - 40 °C |
| Energy efficiency class: | E |
| Net weight: | 0.97 kg |
| Rated value luminous efficacy: | 37.84 lm/W |
| Weighted consumption: | 7.4 kWh/1.000h |
| LXXBXX data: | L70B50 |
| Service life: | 30000 h |
| Number of lights on LS B16A: | 103 St. |
| Number of lights on LS C16A: | 103 St. |
| Inrush current level: | 5 A |
| Inrush current duration: | 25 µs |
| Stroboscopic visibility measure (SVM): | 0.01 |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV QUADRULO, wall-mounted light, 3000K, anthracite/brown"
| Document type | File size | |
|
Operating instructions | 0.39 MB |
|
|
Data sheet | 0.65 MB |
|
|
Certificate | 0.27 MB |
|
|
EPREL-Product data sheet | 0.22 MB |
|
|
Information about the product | 0.87 MB |
