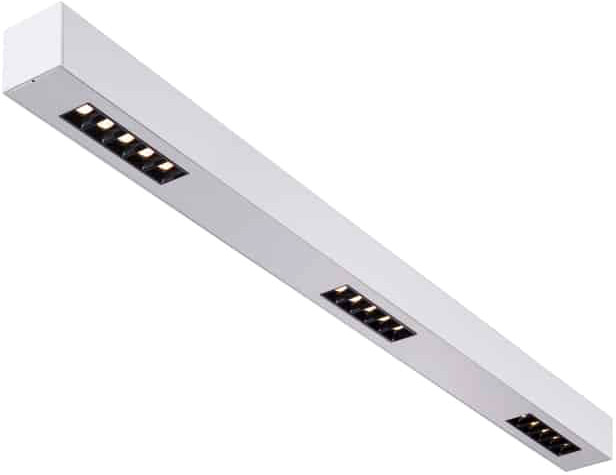

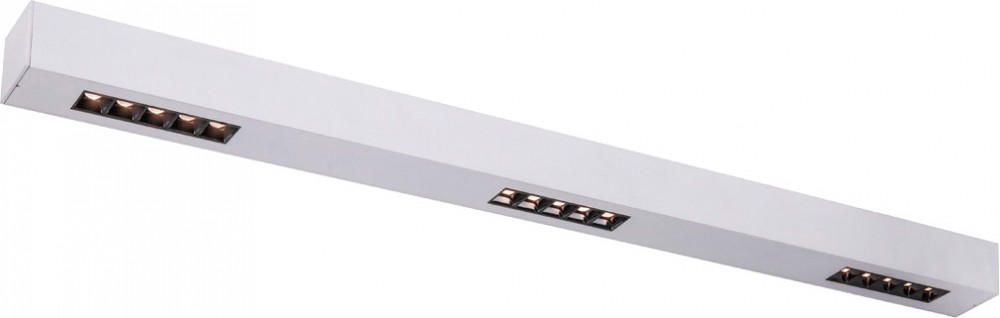

SLV Q-LINE CL, LED Indoor surface-mounted ceiling light, 1m, BAP, silver, 3000K
€178.01 *
Availability:
Currently not available
Currently not available
Item number: 110040440
EAN: 4024163189798
The Q-LINE ceiling light is optionally available with a white, black, or silver-grey luminaire... more
All information about the product:
"SLV Q-LINE CL, LED Indoor surface-mounted ceiling light, 1m, BAP, silver, 3000K"
The Q-LINE ceiling light is optionally available with a white, black, or silver-grey luminaire housing. It is also available with a pure white or warm white LED, and different dimensions. Its high luminance and UGR value of less than 10 make the Q-Line luminaire suitable for workstations. Thanks to the TRIAC dimmable LED driver, the luminaire can be directly connected to the 230 Volt mains voltage supply.Technical data:
Product name: | Q-LINE ® |
Colour: | grey |
Material: | Aluminium |
electrical power: | 46 W |
Lumen/wattage: | 45.65 lm/W |
Luminous Flux: | 2100 lm |
Colour temperature: | 3000 Kelvin |
Half beam angle: | 30 ° |
CRI: | 90 |
UGR =: | 10 |
Different light outlets: | 1 |
Dimmable: | Yes |
Dimming technology: | trailing edge |
Protection category: | I |
IP Code: | IP 20 |
Assembly: | Surface |
Assembly details: | Ceiling |
Shape: | square |

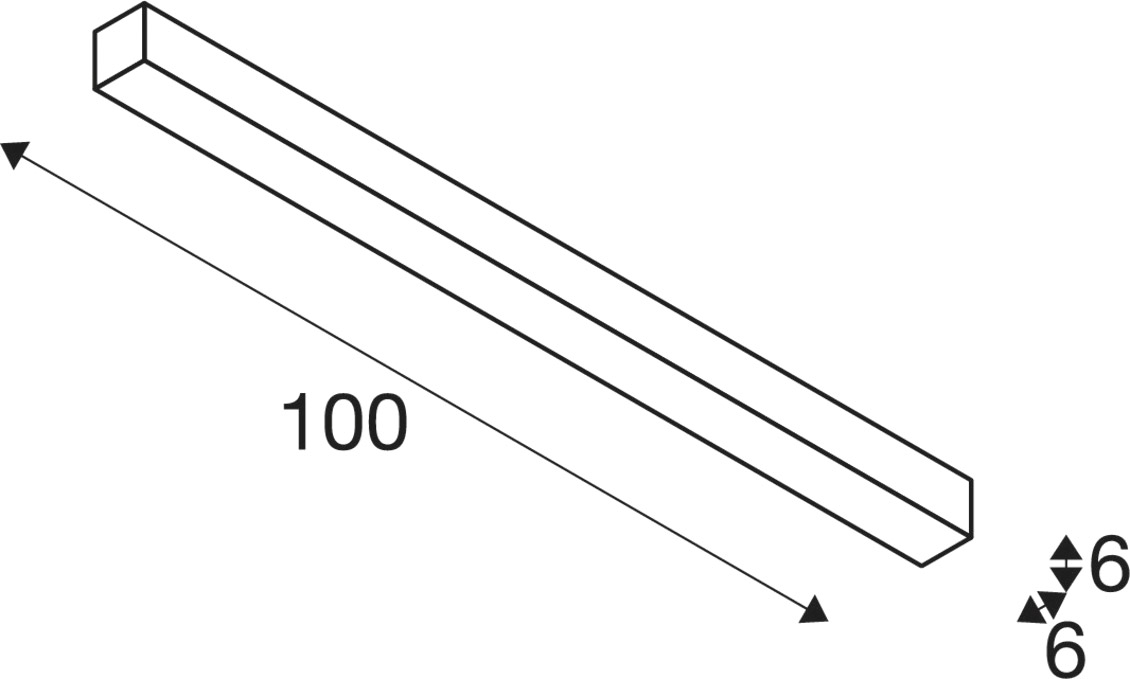

Length: | 100 cm |
Width: | 6 cm |
Height: | 6 cm |
Rotating or tilting: | no |
Light outlet: | direct |
Luminous intensity distribution: | axis symmetric |
Colour consistency: | 6 SDCM |
Service life: | 25000 h |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 900mA |
Net weight: | 2.15 kg |
Rated value luminous efficacy: | 45.65 lm/W |
Weighted consumption: | 46 kWh/1.000h |
LXXBXX data: | L70B50 |
