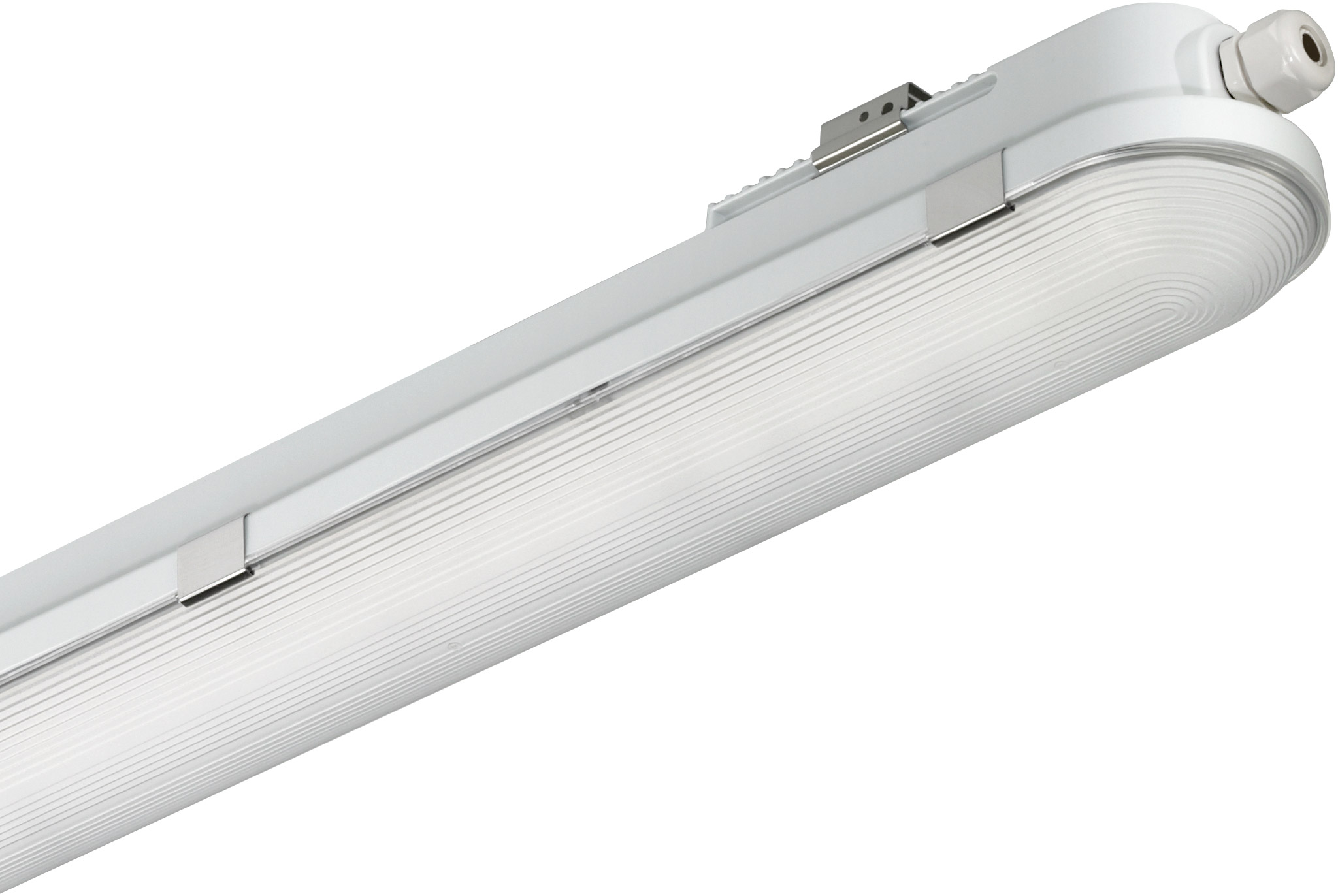

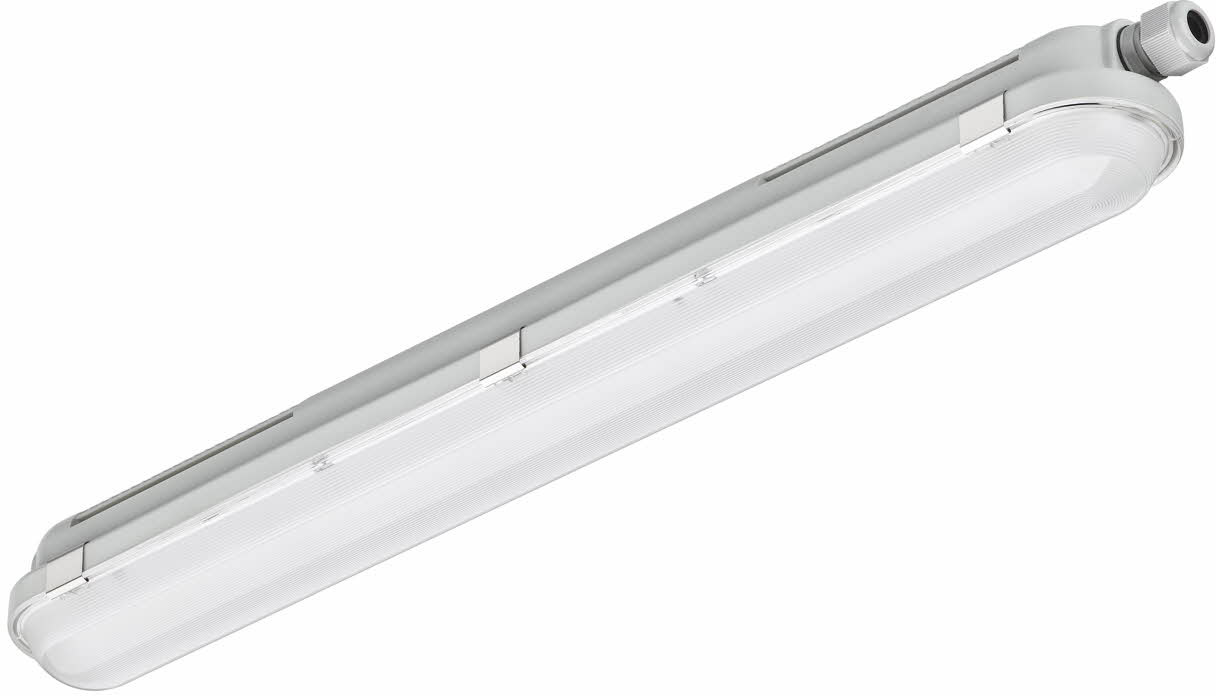

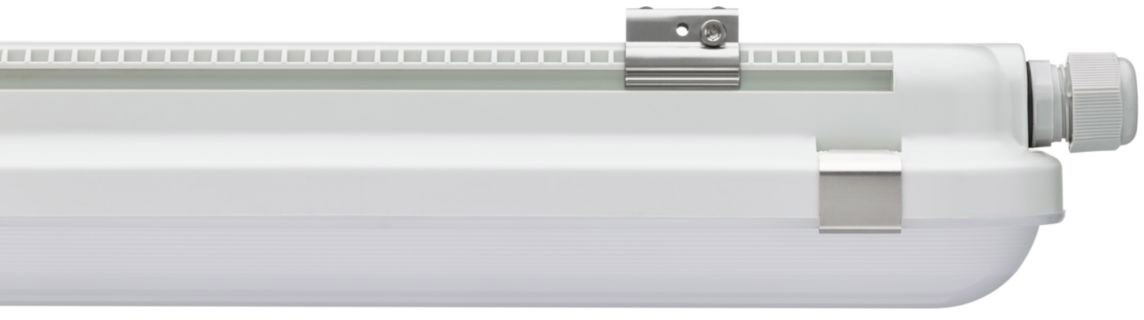

PHILIPS CoreLine Waterproof, 22 W, L1200 mm, 2700 lm, 4000 K, DALI, Wide beam, Frosted, IP65
NEW
€192.41 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 100427485
EAN: 8718696883075
MPN: 910505100044
NEW
PHILIPS CoreLine Waterproof, 22 W, L1200 mm, 2700 lm, 4000 K, DALI, Wide beam, Frosted, IP65... more
All information about the product:
"PHILIPS CoreLine Waterproof, 22 W, L1200 mm, 2700 lm, 4000 K, DALI, Wide beam, Frosted, IP65"
PHILIPS CoreLine Waterproof, 22 W, L1200 mm, 2700 lm, 4000 K, DALI, Wide beam, Frosted, IP65

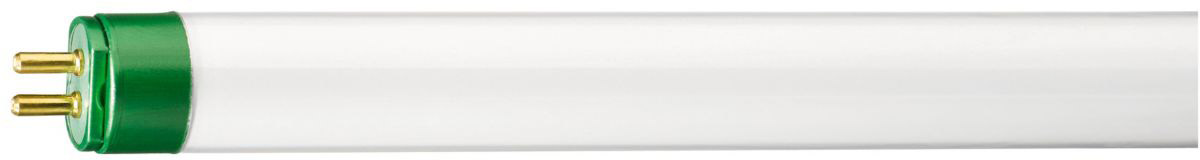

Whether for a new building or renovation of an existing space, customers want lighting solutions that provide quality of light and substantial energy and maintenance savings. The new CoreLine Waterproof range of LED products can be used to replace traditional waterproof luminaires with fluorescent lamps. The process of selecting, installing and maintaining is so easy – it’s a simple switch.

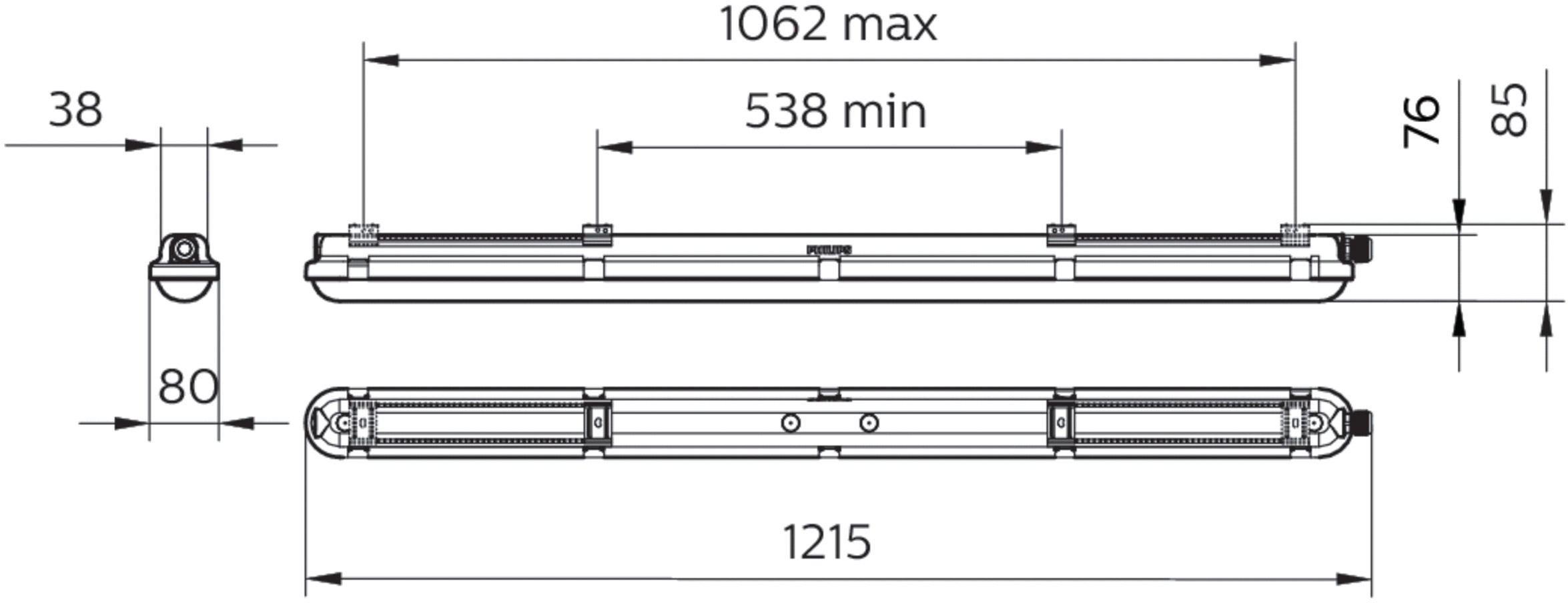

Technical data:| Length: | 1215 mm |
| Width: | 80 mm |
| Height: | 76 mm |
| Nominal voltage: | 220-240 V |
| Nominal power: | 22 W |
| Nominal current: | 90-110 mA |
| Energy consumption: | 22 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Beam angle: | > 80° - Extreme wide beam |
| Luminous flux: | 2700 lm |
| Luminous efficacy: | 123 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | Yes |
| Protection class: | IP65 |
| Energy efficiency class: | E |
| Light source type: | LED not exchangeable |
| Material: | Plastic |
| Colour: | Grey |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | yes |
| Suitable for number of light sources: | 1 |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
| Surface protection housing: | Untreated |
| Material cover: | Plastic matt/satinized |
| Type of grid: | None |
| Voltage type: | AC |

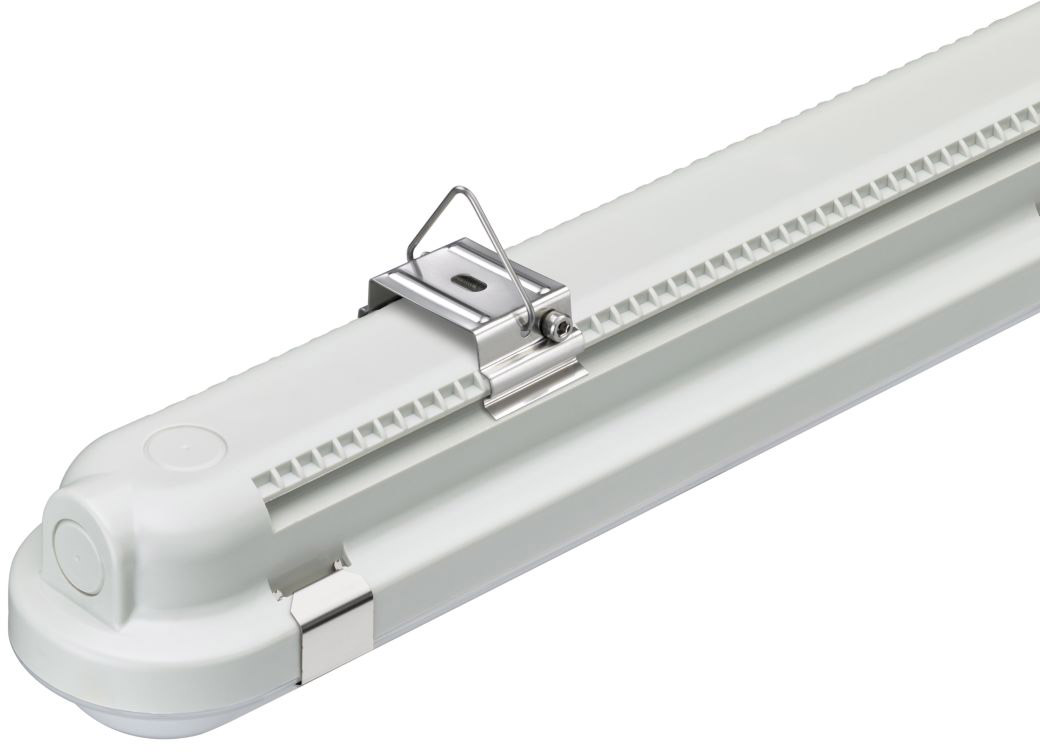

| Suitable for suspended mounting: | yes |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Suitable for ceiling mounting: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Suitable for built-in mounting: | no |
| Light distributor: | Diffuser lens/optic/panel |
| Light distribution: | Symmetric |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Light outlet: | Direct |
| Suitable for surface mounting: | yes |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): | 80% |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): | 5% |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 30 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 51 |
| Impact strength: | IK08 |
| Suitable for light line configuration: | no |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | yes |
| Rated ambient temperature according to IEC 62722-2-1: | 35°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | yes |
| With air slots: | no |
| Filament test according to IEC 60695-2-11: | 850 °C - 30 s |
| Suitable for workplace according to EN 12464-1: | no |
| Flickering value Pst LM: | 1 |
| Power factor: | 0.9 |
| Stroboscope effect value SVM: | 1.6 |
| Constant light output (CLO): | no |
| Built-in height/depth: | 1215 mm |

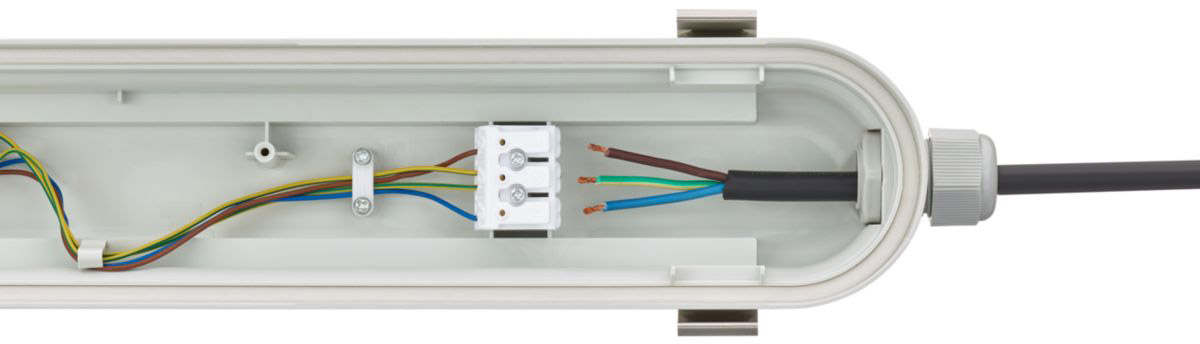

| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 5 |
| Conductor cross section: | 2.5mm² |
| Connection type: | Push-in clamp |
| Total harmonic distortion: | 20 |
| Photobiological safety according to EN 62471: | RG0 |
| Unified Glare Ratio (UGR): | 25 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | Continuously variable |
| Beam angle adjustable: | No |
