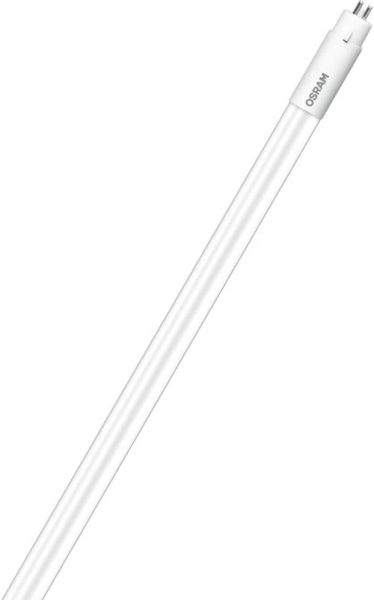

Osram SubstiTUBE Advanced Ultra Output 37 W/865 1500 mm
Envío urgente posible
Plazo de entrega: 1-3 días
Lamentablemente, la descripción de este producto aún no está traducida.
Product benefits
- Quick, simple and safe replacement without rewiring
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Very high resistance to switching loads
- Also suitable for operation at low temperatures
- No bending thanks to glass technology
Areas of application
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
Product features
- Bright, robust and durable
- For especially uniform illumination
- Lifetime: up to 50,000 h
- Mercury-free and RoHS compliant
- Type of protection: IP20
Equipment / Accessories
- Suitable for operation on electronic control gear
- Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- Not suitable for operation with low-loss and conventional control gears
Legal advice
When used to replace a T5 fluorescent lamp, the total energy efficiency and light distribution depends on the design of the lighting system.Technical Data | |
| Electrical data | |
Nominal wattage: | 37.00 W |
Rated wattage: | 37.00 W |
Nominal voltage: | 220…240 V |
Operating frequency: | 50…60 Hz |
Nominal current: | 0.664 A |
Type of current: | AC |
Power factor λ: | > 0.90 |
| Photometrical data | |
Light color (designation): | Cool Daylight |
Color temperature: | 6500 K |
Nominal luminous flux: | 5600 lm |
Rated luminous flux: | 5600 lm |
Color rendering index Ra: | >80 |
Standard deviation of color matching: | ≤4 sdcm |
| Light technical data | |
Starting time: | < 0.2 s |
Warm-up time (60 %): | < 0.50 s |
Rated beam angle (half peak value): | 180.00 ° |
| Dimensions & weight | |
Overall length: | 1463 mm |
Length with base excl. base pins/connection: | 1449.00 mm |
Tube diameter: | 16 mm |
Base diameter: | 17.0 mm |
Product weight: | 185.00 g |
| Temperatures & operating conditions | |
Ambient temperature range: | -20…+45 °C |
| Lifespan | |
Nominal lamp life time: | 60000 h |
Rated lamp life time: | 60000 h |
Lifespan: | 60000 h |
Lumen main.fact.at end of nom.life time: | 0.70 |
Number of switching cycles: | 200000 |
| Additional product data | |
Base (standard designation): | G5 |
Mercury-free: | Yes |
| Capabilities | |
Dimmable: | No |
| Certificates & standards | |
Type of protection: | IP20 |
Standards: | CE; VDE |
Energy efficiency class: | A++ |
Energy consumption: | 43 kWh/1000h |
| Logistical data | |
Temperature range at storage: | -20…80 °C |
