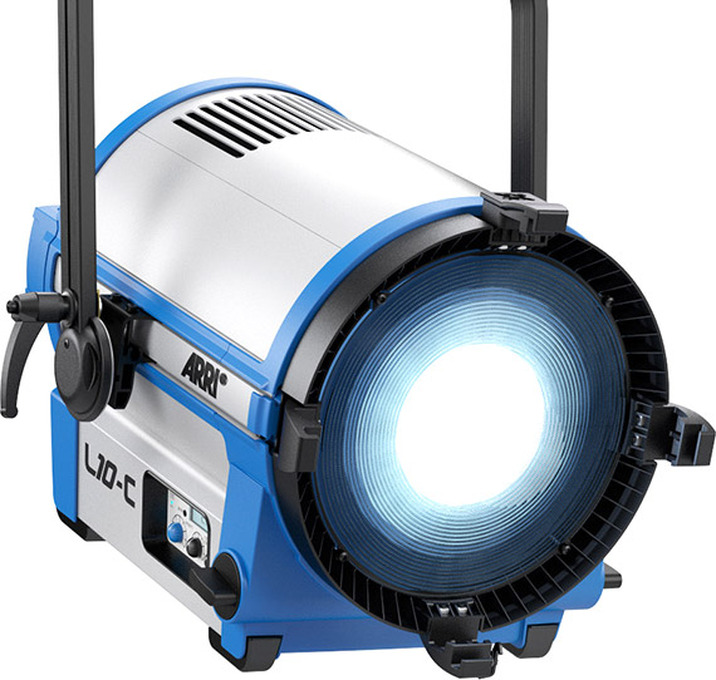

ARRI L10-C, Fresnel, STAND-MOUNT, RGBW, blau-silber, mit Schuko
cerca de 2 semanas
Lamentablemente, la descripción de este producto aún no está traducida.
Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000 K, between full plus or minus green and RGBW colors.
The L10 is the brightest and largest L-Series lamphead to date. Its substantial 10" Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.
Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2,800 K to 10,000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.
In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.
STAND-MOUNT
versions include the following base configuration: 28 mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.
HANGING
versions include the following base configuration: 28 mm Spigot (Junior Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
POLE-OPERATED
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28 mm Spigot (Junior Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
Features
- Fully Tuneable from 2,800 K to 10,000 K
- Plus/Minus green correction
- Vibrant Color Selection (RGB+W Color Gamut)
- Hue and Saturation Control
- High Color Rendering
- Low Power Consumption (400 W Nominal)
- Fully Dimmable
- True Fresnel Lens Light Characteristics
- Onboard DMX In and Out
- RDM Implementation
- USB Mini Connection for Firmware Updates
- Available in Blue/Silver and Black
- Fan Mode Selection
- powerCON TRUE1 Power Connector
Technical Data | |
Optical System: | Focusable Fresnel |
Lens Diameter: | 274 mm / 10.8" |
Beam Angle: | 15° to 50° (Half Peak Angle) |
Weight: | Manual Version |
Pole Op Version: | 604 x 480 x 560 mm / 23.8 x 18.9 x 22" |
Packed Weight: | Manual Version |
Size w/ spigot (H x W x L): | Manual Version |
Size w/o spigot (H x W x L): | Manual Version |
Packed Size (H x W x L): | 735 x 610 x 450 mm / 28.9 x 24 x 17.7" |
Handling: | Adjustable Sliding Stirrup, High Strength Tilt Lock, |
| Pole Operation Option (Pan, Tilt and Focus) | |
Mounting: | 28 mm Spigot (Junior Pin) |
Tilt Angle: | +/- 90° |
Power Supply Range: | 100 to 250 V AC, 50/60 Hz |
Power Consumption: | 400 W (Nominal), 510 W (Maximum) |
Power Connection: | powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available) |
White Light: | 2,800 K to 10,000 K Continuously Variable Correlated Color Temperature |
Colored Light: | Full RGB+W Color Gamut with Hue and Saturation Control |
Color Temperature Tolerance: | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
Color Rendition: | CRI Average > 95 (3,200 K to 6,500 K), TLCI Average > 91 |
Green-Magenta Adjustment: | Continuously Adjustable (Full Minusgreen to Full Plusgreen) |
Dimming: | 0 to 100 % Continuous |
Control: | 5-Pin DMX In and Through, On-Board Controller, Mini-USB |
Remote Device Management (RDM): | DMX Setup, Hour Counter and Standard RDM Commands |
Mini-USB Interface: | DMX Setup, Fixture Status and Firmware Upgrade Through PC Software |
Housing Color: | Blue/Silver, Black |
Ambient Temperature Operation: | -20 to +45º C (-4 to +113º F) |
Protection Class / IP Rating: | I / IP20 |
Estimated LED Lifetime (L70): | 50,000 hours |
Estimated Color Shift Over Lifetime: | +/- 5 % |
Certifications: | CE, CB, GS, cNRTLus, FCC, PSE |
