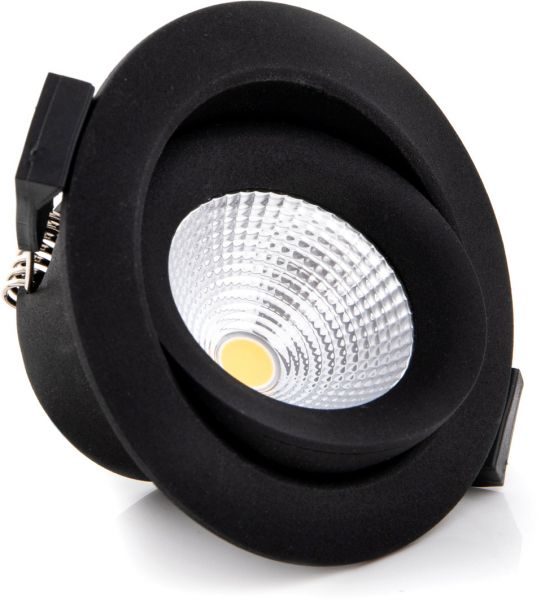

roundCENTURY 360 - noir 8W 36° 3000K CRI>90

roundCENTURY 360 - schwarz 8W 36° 3000K CRI>90

41,89 € * 55,00 € * (23,84% économisé)

incl. TVA, plus frais d'envoi

Envoi express possible

Disponibilité:

Stock faible
Délai de livraison: 1-3 journées

Délai de livraison: environ 1-3 journées

Réf. d’article: 110821840

EAN: 7070938061414

MPN: AA81219.02.91

Small, universal LED downlight in retail and architecture. Mounting directly into the isolation...plus

Retour à l'aperçu

Toutes les informations sur le produit:

"roundCENTURY 360 - noir 8W 36° 3000K CRI>90"

Pardon!
Malheureusement, cette description de produit n’est pas encore traduite.

Small, universal LED downlight in retail and architecture. Mounting directly into the isolation layer til the moisture barrier. No recessing box necessary, suitable for several ceiling cut outs 68-83mm. Housing from die-cast aluminum. High efficient multi mirror reflector, integrated safety glass. Rotating range 360°. Tilting range 30°. Colour tolerance < 3 SDCM. Colour stability after 50.000h 4 SDCM. Lumen maintenance after 50.000h L80/B10. Separate, via phase-cut dimmable control gear, incl. quick-connector. 5 Years warranty.

Features
Suitable for surface mounting	No
Suitable for built-in mounting	Yes
Suitable for wall mounting	No
Suitable for suspended mounting	No
Suitable for ceiling mounting	Yes
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	No
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Suitable for low voltage cable system	No
Adjustability	Rotating and swivelling
With movement sensor	No
With light sensor	No
Lamp type	LED not exchangeable
With light source	Yes
Suitable for number of lamps	1
Lamp holder	None
Material housing	Aluminium
Surface protection	Powder coating
Colour housing	Black
Material cover	Plastic, transparent
Surface brushed	No
Voltage type	AC
Nominal voltage	220 - 240 V
Type of control gear	LED operating device voltage-controlled
Control gear included	Yes
Dimming depending on control gear	Yes
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming DSI	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	Yes
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	No
Reflector	High-gloss
Light distributor	Reflector
Light sharing	Symmetric
Beam angle	Medium beam 21-40°
Light outlet	Direct
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Rated life time L80/B10 at 25 °C	50000 h
Degree of protection (IP)	IP44
Protection class	II
Rated ambient temperature acc. IEC62722-2-1	- 10 - 45 °C
Max. system power	8 W
Colour of light	White
Colour temperature	3000 - 3000 K
Colour rendering index CRI	90-100
Luminous flux	560 - 560 lm
Power factor	0.9
Outer diameter	90 mm
Built-in height/depth	55 mm
Built-in diameter	68 mm
Type of wiring	Ending
Number of poles	3
Connection type	Plug clamp
Luminaire with limited surface temperature, sign "D“	No
Luminaire efficacy	70 lm/W
Fit for monitor workplace acc. EN 12464-1	No
Covering of the luminaire with thermally insulating material possible	Yes
Filament test according to IEC 60695-2-11	None
Photobiological safety according to EN 62471	RG1
Colour consistency (McAdam ellipse)	SDCM3
